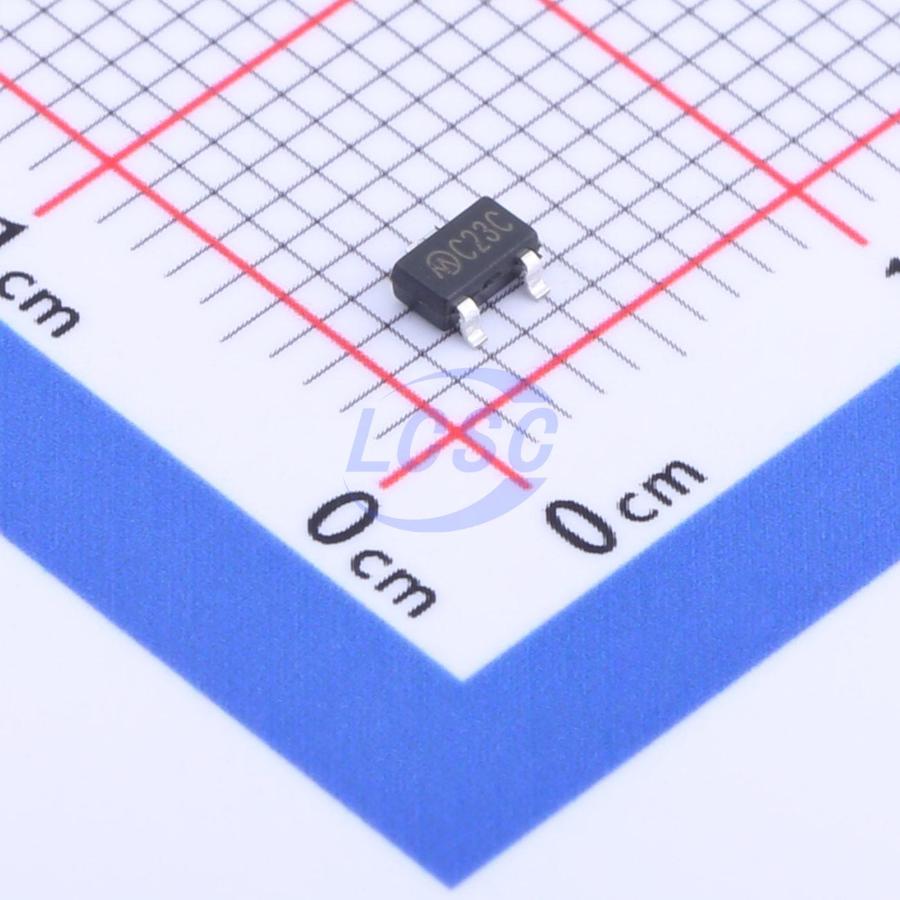

MD6127C23
Supervisor Push-Pull SOT-23-3L
High-precision voltage detector
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD6127C23
- Store part #
- C920517
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C920517
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.66 | ₹78.30 |
| 50+ | ₹12.75 | ₹637.50 |
| 150+ | ₹11.30 | ₹1,695.00 |
| 500+ | ₹10.20 | ₹5,100.00 |
| 3,000+ | ₹8.52 | ₹25,560.00 |
| 6,000+ | ₹8.08 | ₹48,480.00 |
5 × ₹15.66
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD6127C23
₹78.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- standby current
- 1.1uA
- Voltage - Supply
- 1V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The MD6127CXX series are high-precision voltage detection ICs developed using CMOS technology, featuring a built-in fixed delay time generation circuit. The detection voltage is internally fixed with an accuracy of ±2.0%. In addition, since an oscillator circuit and countdown timer are built in internally, the release signal can be delayed without any external components; three delay time options are available. Output configurations include NMOS open-drain and CMOS output.
Applications
- Power monitoring for handheld devices such as laptops and digital still cameras
- Regulated power supply monitoring for instruments, meters, and communication equipment
- Power supply monitoring for microcomputers and CPU reset
Key features
- Ultra-low quiescent current
- High-accuracy detection voltage
- Operating voltage range
- Hysteresis characteristics
- Detection voltage range
- Delay time
- Output type
- Available in SOT23-5L, SOT23-3L packages
- Lead-free, Sn 100%, halogen-free
