Mingda MicroelectronicsDatasheet (PDF)

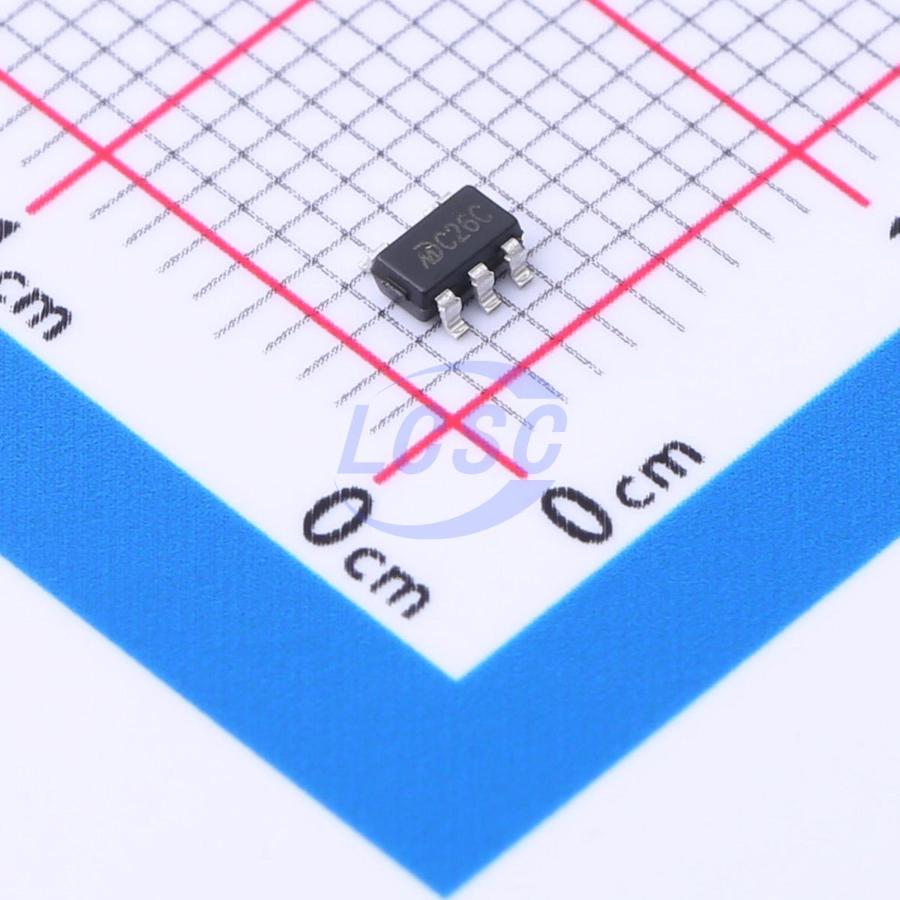

MD6127C26
Linear Voltage Regulator IC Positive Fixed 1 Output 6mA SOT-23-5
SOT-23-5RoHSActive
High-precision voltage detector
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD6127C26
- Store part #
- C920523
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C920523
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.56 | ₹67.80 |
| 50+ | ₹10.77 | ₹538.50 |
| 150+ | ₹9.38 | ₹1,407.00 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 3,000+ | ₹6.60 | ₹19,800.00 |
| 6,000+ | ₹6.18 | ₹37,080.00 |
5 × ₹13.56
₹67.80
excl. GST
₹80.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD6127C26
₹67.80 for 5 + GST
Specifications
- Output Voltage
- 2.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.1uA
- Output Configuration
- Positive
- Output Current
- 6mA
- Operating Voltage
- 12V
- Features
- Reset function
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The MD6127CXX series are high-precision voltage detector ICs developed using CMOS technology, featuring a built-in fixed delay time generation circuit. The detection voltage is internally fixed with an accuracy of ±2.0%. In addition, since an oscillator circuit and counter timer are built in internally, no external components are required to delay the release signal. Three delay time options are available. Output configurations include NMOS open-drain and CMOS output.
Applications
- Power monitoring for handheld devices such as laptops and digital still cameras
- Regulated power supply monitoring for instrumentation and communication equipment
- Power supply monitoring for microcomputers and CPU reset
Key features
- Ultra-low quiescent current
- High-accuracy detection voltage
- Wide operating voltage range
- Hysteresis characteristics
- Detection voltage range
- Delay time
- Output type
- Available in SOT23-5 package
- Lead-free, Sn 100%, halogen-free
