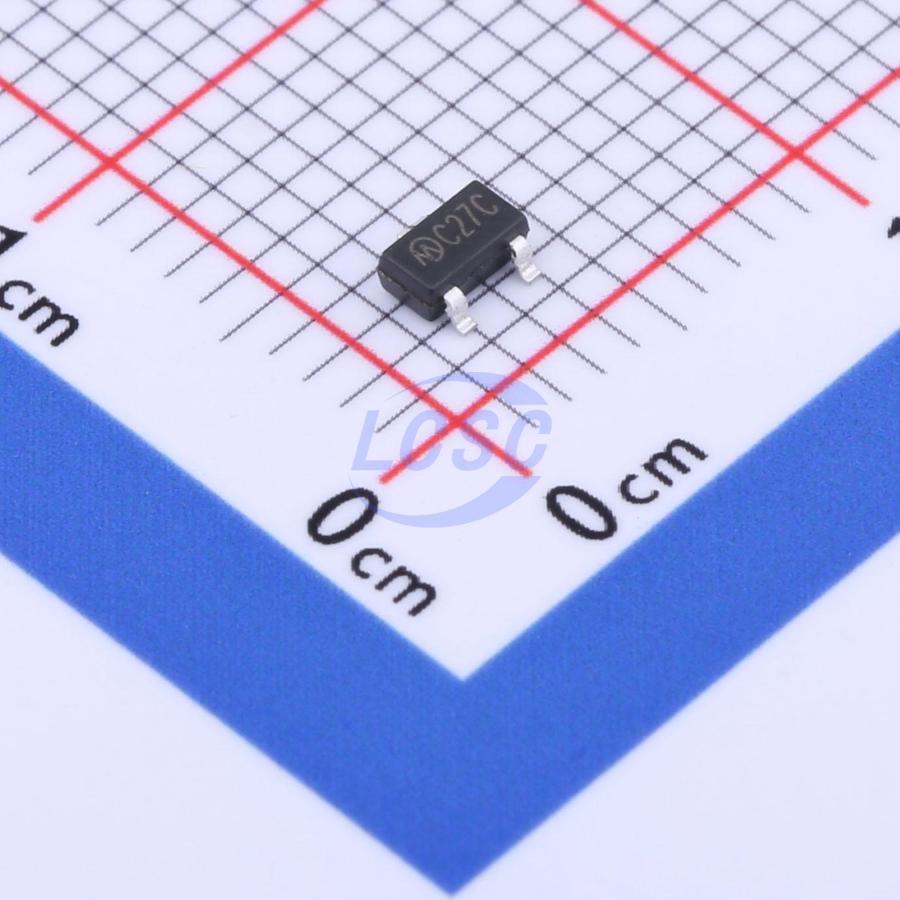

MD6127C27
Supervisor Push-Pull SOT-23-3L
High-precision voltage detector
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD6127C27
- Store part #
- C920519
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,875 in stock
#C920519
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.63 | ₹103.15 |
| 50+ | ₹16.55 | ₹827.50 |
| 150+ | ₹14.53 | ₹2,179.50 |
| 500+ | ₹12.99 | ₹6,495.00 |
| 3,000+ | ₹10.89 | ₹32,670.00 |
| 6,000+ | ₹10.27 | ₹61,620.00 |
5 × ₹20.63
₹103.15
excl. GST
₹121.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD6127C27
₹103.15 for 5 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- standby current
- 1.2uA
- Voltage - Supply
- 1V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.7V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The MD6127CXX series are high-precision voltage detector ICs developed using CMOS technology, featuring a built-in fixed delay time generation circuit. The detection voltage is internally fixed with an accuracy of ±2.0%. In addition, since an oscillator circuit and counter timer are built in internally, no external components are required to delay the release signal. Three delay time options are available. Output configurations include NMOS open-drain and CMOS output.
Applications
- Power monitoring for handheld devices such as laptops and digital still cameras
- Regulated power supply monitoring for instrumentation and communication equipment
- Power supply monitoring for microcomputers and CPU reset
Key features
- Ultra-low quiescent current: 1.2μA typical (VDD = 3.5 V)
- High-accuracy detection voltage: ±2.0%
- Operating voltage range: 1.0 V ~ 12.0 V
- Hysteresis: 60 mV typical
- Detection voltage range: 2.2 V ~ 6.0 V
- Delay time: 200 ms typical
- Output type: NMOS open-drain output, CMOS output
- Available in SOT23-5L, SOT23-3L packages
- Lead-free, Sn 100%, halogen-free
