Mingda MicroelectronicsDatasheet (PDF)

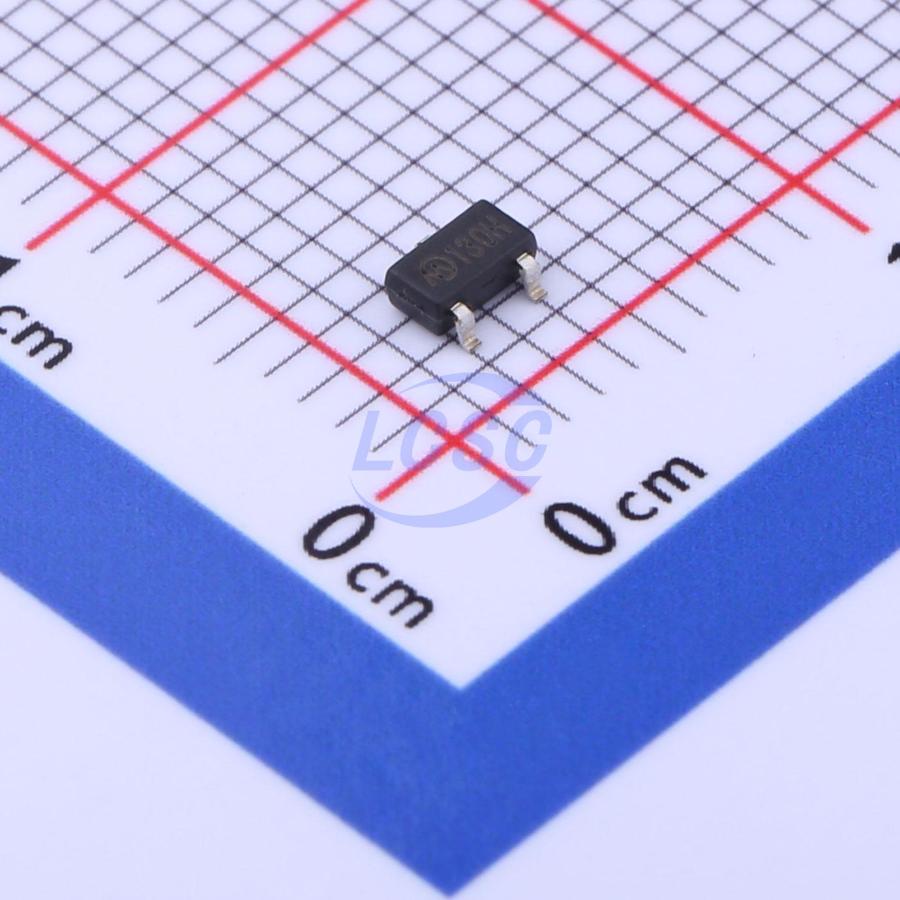

MD7130H
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-23-3L
SOT-23-3LRoHSActive
High-withstand-voltage, low-dropout, and low-power-consumption LDO
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7130H
- Store part #
- C920376
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,935 in stock
#C920376
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.73 | ₹63.65 |
| 50+ | ₹10.11 | ₹505.50 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.93 | ₹35,580.00 |
| 9,000+ | ₹5.83 | ₹52,470.00 |
| 21,000+ | ₹5.78 | ₹1,21,380.00 |
5 × ₹12.73
₹63.65
excl. GST
₹75.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD7130H
₹63.65 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Operating Voltage
- 32V
- Output Current
- 30mA
- Features
- Input overvoltage protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The MD71XXH series are high-precision buck regulator ICs developed with CMOS technology, featuring low dropout voltage and low quiescent current. The built-in low on-resistance transistor enables a low input-output voltage differential. With a maximum operating voltage of 32V, they are well-suited for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy, ±3% precision
- Low dropout voltage, typical 40mV (Iout=1mA)
- Ultra-low quiescent current, typical 1.2μA
- Low output voltage temperature drift, typical 50PPm/℃
- Input voltage withstand up to 32V with regulated output, OVP included
- Output short-circuit protection, short-circuit current 30mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD85E30QA3#C2978365Mingda Microelectronics · SOT-23-3L | Mingda Microelectronics | SOT-23-3L | On request | ₹19.78 · 0 in stock | View |
