Mingda MicroelectronicsDatasheet (PDF)

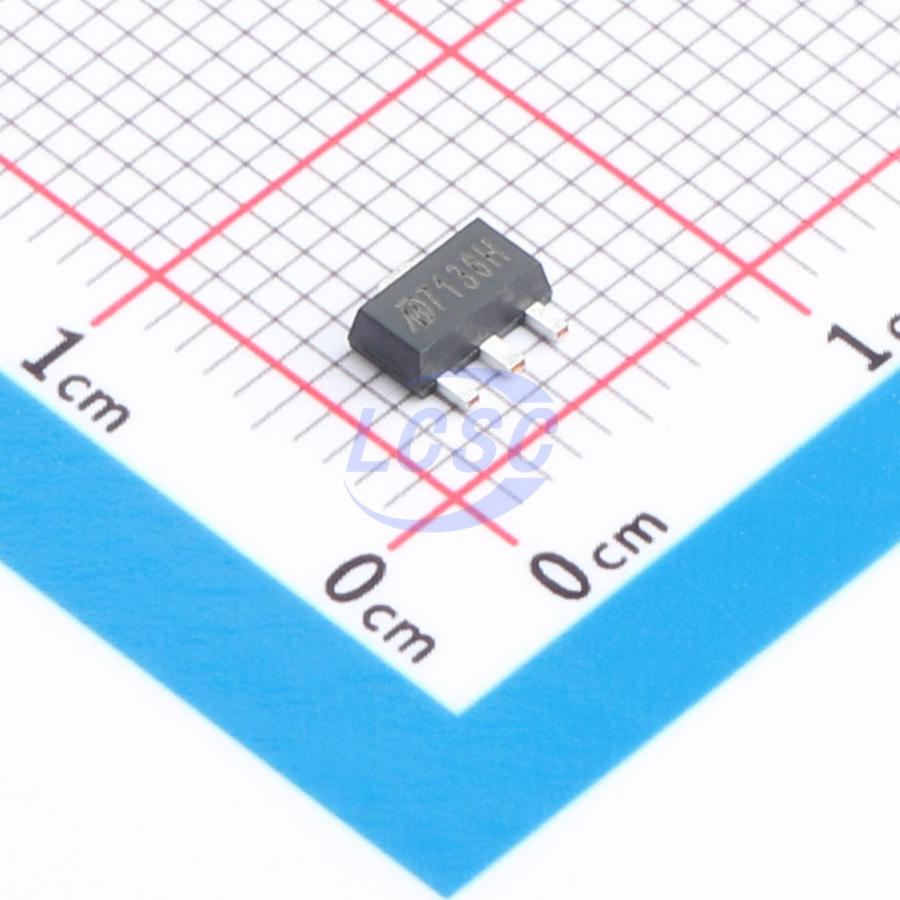

MD7136H
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-89-3
SOT-89-3RoHSActive
High-withstand-voltage, low-dropout, and low-power-consumption LDO
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7136H
- Store part #
- C920382
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C920382
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.13 | ₹80.65 |
| 50+ | ₹12.82 | ₹641.00 |
| 150+ | ₹11.15 | ₹1,672.50 |
| 1,000+ | ₹9.91 | ₹9,910.00 |
| 2,000+ | ₹8.92 | ₹17,840.00 |
| 5,000+ | ₹8.43 | ₹42,150.00 |
| 10,000+ | ₹8.32 | ₹83,200.00 |
| 20,000+ | ₹8.26 | ₹1,65,200.00 |
5 × ₹16.13
₹80.65
excl. GST
₹95.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MD7136H
₹80.65 for 5 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Operating Voltage
- 32V
- Output Current
- 30mA
- Features
- Input overvoltage protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
The MD71XXH series are high-precision buck regulator ICs developed with CMOS technology, featuring low dropout voltage and low quiescent current. The built-in low on-resistance transistor enables a low input-output voltage differential. With a maximum operating voltage of 32V, they are well-suited for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy, ±3% precision
- Low dropout voltage, typical 40mV (Iout=1mA)
- Ultra-low quiescent current, typical 1.2μA
- Low output voltage temperature drift, typical 50PPm/℃
- Input voltage withstand up to 32V with regulated output, OVP included
- Output short-circuit protection, short-circuit current 30mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD8236A#C920441Mingda Microelectronics · SOT-89-3 | Mingda Microelectronics | SOT-89-3 | 725 | ₹17.65 · 725 in stock | View |
 | MD7680A36PA1#C42377920Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 35 | ₹32.23 · 35 in stock | View |
 | MD8336#C2978355Mingda Microelectronics · SOT-89-3 | Mingda Microelectronics | SOT-89-3 | 73 | ₹20.80 · 73 in stock | View |
 | MD85E36PA1#C2978505Mingda Microelectronics · SOT-89-3 | Mingda Microelectronics | SOT-89-3 | 190 | ₹22.25 · 190 in stock | View |
 | MD85A36PA1#C920482Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 455 | ₹16.10 · 455 in stock | View |
