Mingda MicroelectronicsDatasheet (PDF)

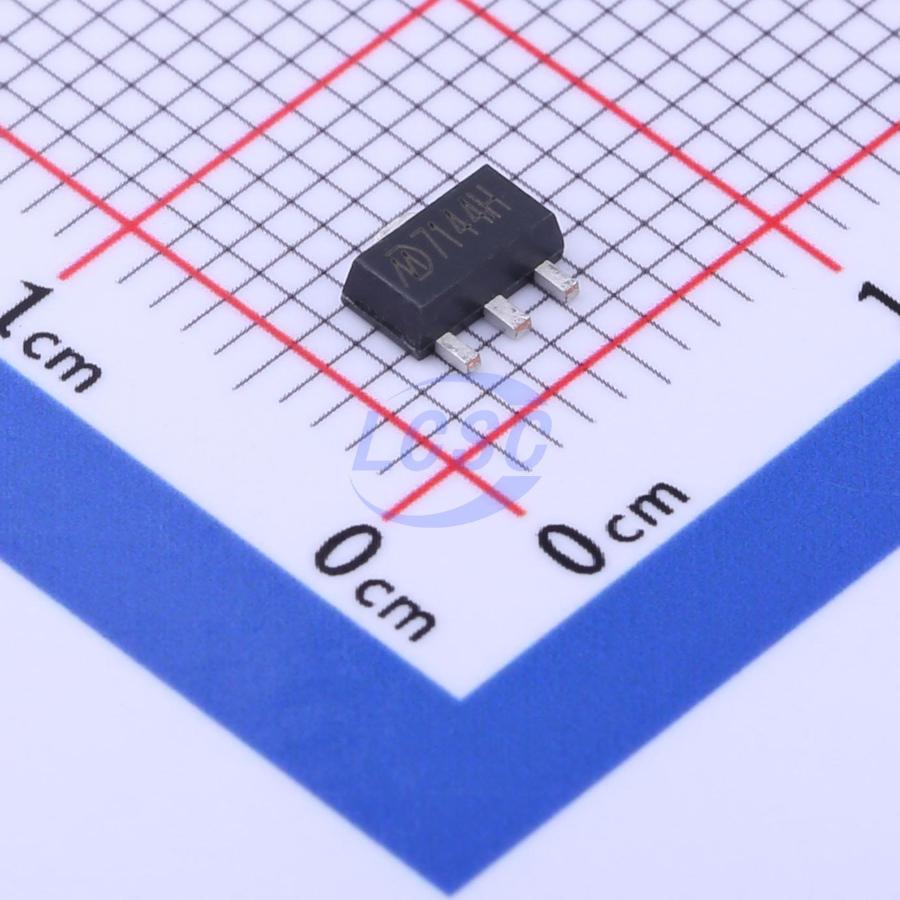

MD7144H
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-89-3
SOT-89-3RoHSActive
High-withstand-voltage, low-dropout, and low-power-consumption LDO
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7144H
- Store part #
- C920383
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C920383
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.25 | ₹86.25 |
| 50+ | ₹13.71 | ₹685.50 |
| 150+ | ₹11.93 | ₹1,789.50 |
| 1,000+ | ₹10.60 | ₹10,600.00 |
| 2,000+ | ₹9.54 | ₹19,080.00 |
| 5,000+ | ₹9.01 | ₹45,050.00 |
5 × ₹17.25
₹86.25
excl. GST
₹101.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MD7144H
₹86.25 for 5 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Operating Voltage
- 32V
- Output Current
- 30mA
- Features
- Input overvoltage protection;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
The MD71XXH series are high-precision buck regulator ICs developed with CMOS technology, featuring low dropout voltage and low quiescent current. The built-in low on-resistance transistor enables a low input-output voltage differential. With a maximum operating voltage of 32V, they are well-suited for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy, ±3% precision
- Low dropout voltage, typical 40mV (Iout=1mA)
- Ultra-low quiescent current, typical 1.2μA
- Low output voltage temperature drift, typical 50PPm/℃
- Input voltage withstand up to 32V with regulated output, OVP included
- Output short-circuit protection, short-circuit current 30mA
