Mingda MicroelectronicsDatasheet (PDF)

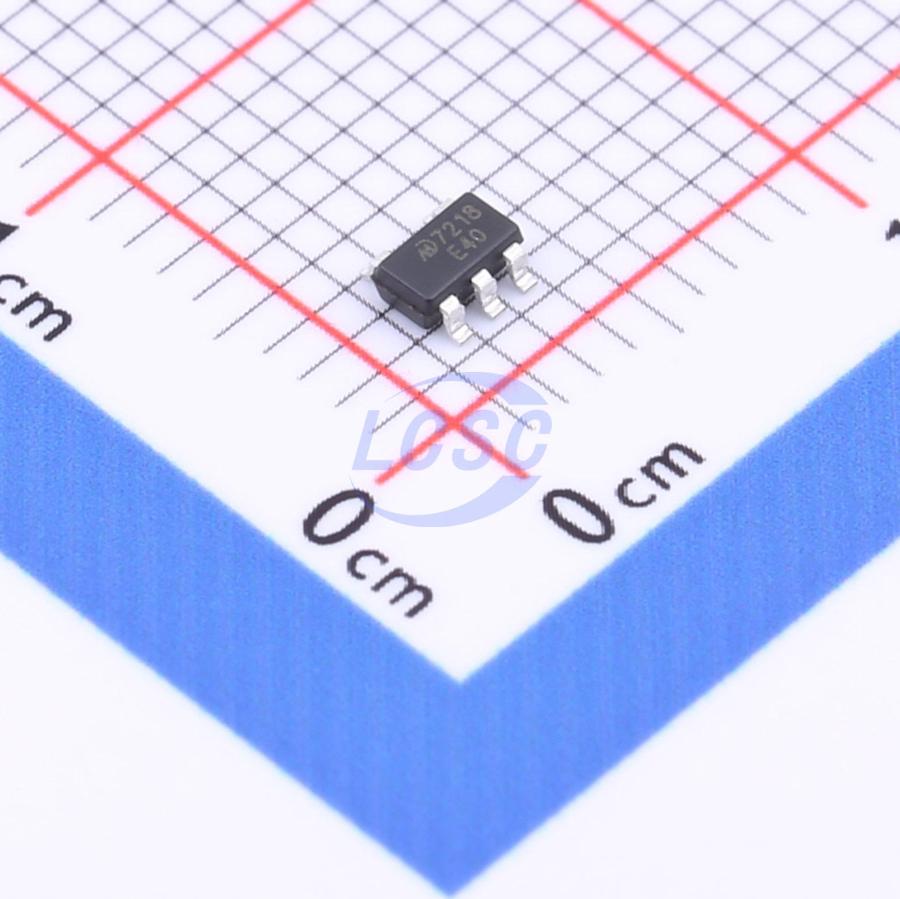

MD7218E40QC3
4V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
High Voltage Low Power Consumption LDO
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7218E40QC3
- Store part #
- C920496
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,115 in stock
#C920496
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.10 | ₹90.50 |
| 50+ | ₹14.21 | ₹710.50 |
| 150+ | ₹12.26 | ₹1,839.00 |
| 500+ | ₹10.81 | ₹5,405.00 |
| 3,000+ | ₹9.51 | ₹28,530.00 |
| 6,000+ | ₹8.92 | ₹53,520.00 |
5 × ₹18.10
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD7218E40QC3
₹90.50 for 5 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 15V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
MD7218 series is a high voltage (up to 15V) ultra-low quiescent current low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 1A of current while consuming only 1.6uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The MD7218 series is designed specifically for applications where very-low IQ is a critical parameter. This device maintains low quiescent current consumption even in dropout mode to further increase the battery life.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Ultra-low Quiescent Current: 1.6uA
- Maximum Input Voltage: 15V
- Output Voltage Highly Accurate: ±2%
- Maximum Output Current: 1A
- Dropout Voltage: 650mV@IOUT=1A
- Temperature Stability: ±50ppm/°C
- Protections Circuits: Current Limiter, Short Circuit, Foldback, Thermal shutdown
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD7219E40QC3#C2978434Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | On request | ₹19.57 · 0 in stock | View |
