Mingda MicroelectronicsDatasheet (PDF)

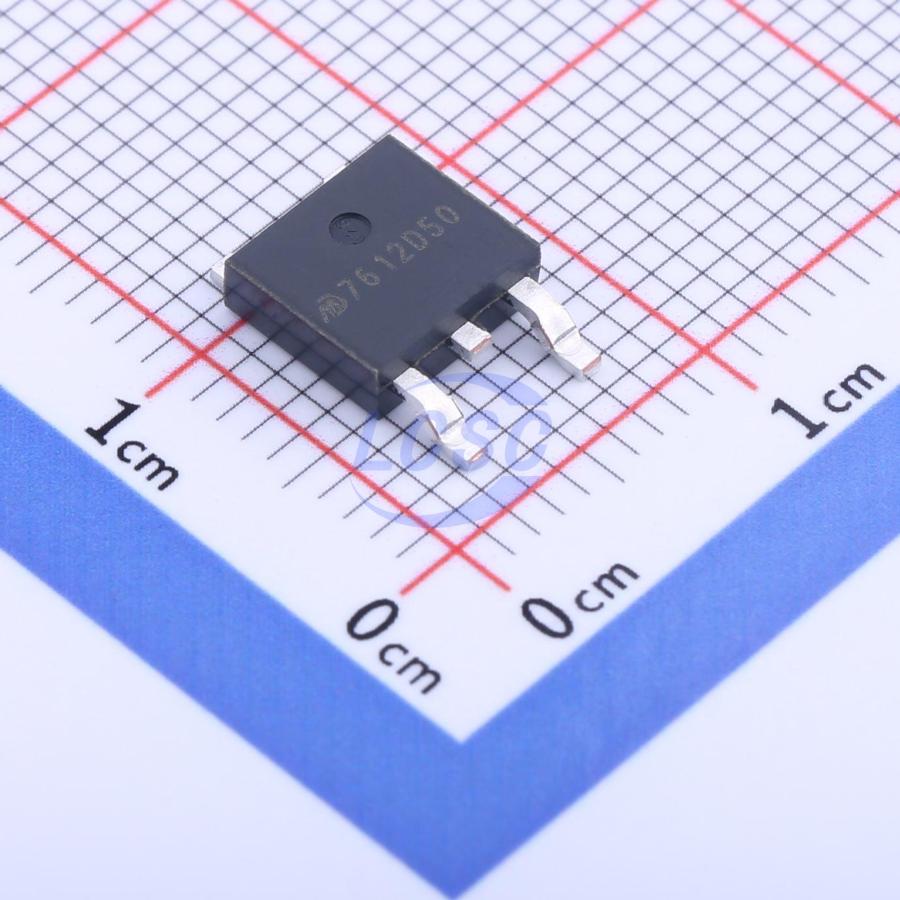

MD7612D50UA2
5V Positive Fixed TO-252-2L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2LRoHSActive
High Voltage Low Power Consumption LDO CMOS Voltage Regulator 1A
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7612D50UA2
- Store part #
- C2978419
- Package / case
- TO-252-2L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C2978419
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.68 | ₹233.40 |
| 50+ | ₹37.11 | ₹1,855.50 |
| 150+ | ₹33.02 | ₹4,953.00 |
| 500+ | ₹27.90 | ₹13,950.00 |
| 2,500+ | ₹23.47 | ₹58,675.00 |
| 5,000+ | ₹22.11 | ₹1,10,550.00 |
5 × ₹46.68
₹233.40
excl. GST
₹275.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MD7612D50UA2
₹233.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.388 g
Overview
MD7612 Series is a high voltage (up to 40V) low power low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 1A of current while consuming only 1.6uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers
- High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives
- Battery Chargers
Key features
- Ultra-low Quiescent Current: 1.6uA
- Maximum Input Voltage: 40V
- Output Voltage Highly Accurate: ±2%
- Maximum Output Current: 1A
- Dropout Voltage: 10mV@Iour = 10mA
- Temperature Stability: ±45ppm/℃
- ON/OFF Logic = Enable High
- Protections Circuits: Current Limiter, Foldback, Over Temperature Protection
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
