Mingda MicroelectronicsDatasheet (PDF)

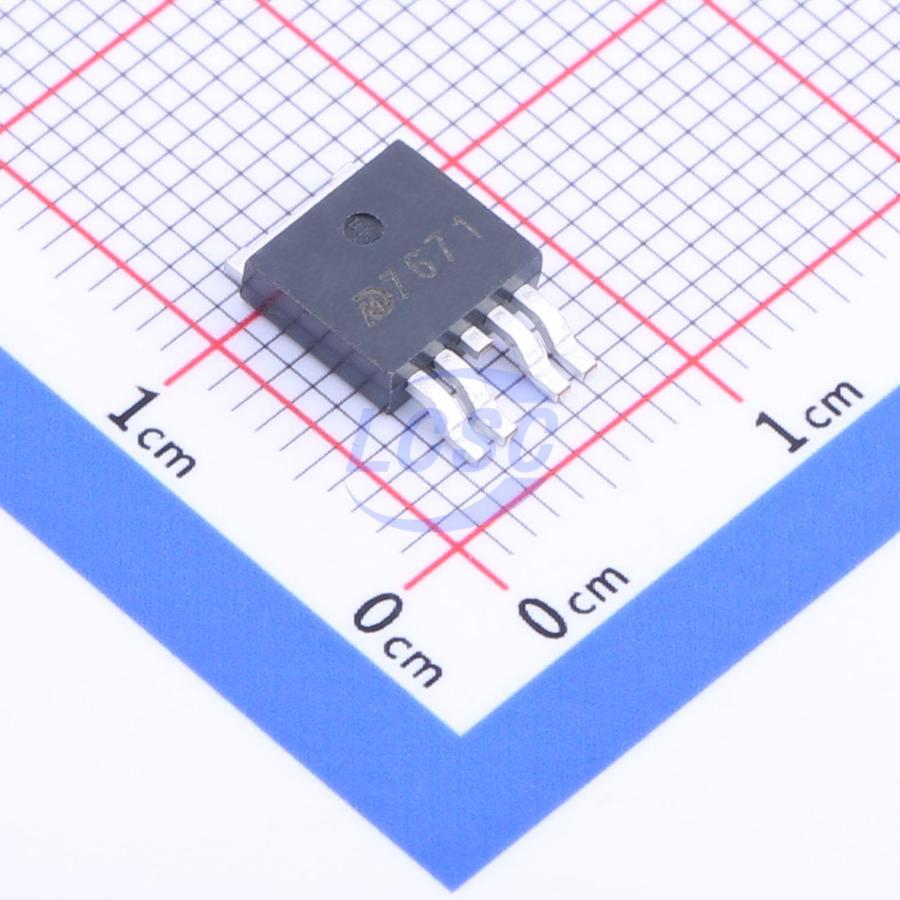

MD7671E50UB2
5V Positive Adjustable TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-4RoHSActive
5V-Adjustable High-PSRR Low-Noise LDO 1A CMOS Voltage Regulator With ON/OFF Switch
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7671E50UB2
- Store part #
- C920515
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C920515
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.64 | ₹138.20 |
| 50+ | ₹24.33 | ₹1,216.50 |
| 150+ | ₹22.91 | ₹3,436.50 |
| 500+ | ₹20.03 | ₹10,015.00 |
| 2,500+ | ₹19.25 | ₹48,125.00 |
| 5,000+ | ₹18.77 | ₹93,850.00 |
| 10,000+ | ₹18.54 | ₹1,85,400.00 |
| 20,000+ | ₹18.38 | ₹3,67,600.00 |
5 × ₹27.64
₹138.20
excl. GST
₹163.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MD7671E50UB2
₹138.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 6V
- Features
- Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge;Noise bypass terminal
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.473 g
Overview
MD7671 series are highly accurate, lownoise, high power supply rejection ratio (PSRR), low-dropout voltage regulator (LDO) with high output current capability manufactured in CMOS processes. It can deliver up to 1A of current while consuming 40μμ of quiescent current. Internal circuitry includes a reference voltage generator, an error amplifier, driver transistor, over-current protection circuit, short-circuit protection circuit, thermal shutdown circuit and a phase compensation circuit. The MD7671 operates by default as a fixed output voltage regulator (default output voltage: 5V) while usage of an external resistor divider allows adjustable out voltages as low as 0.7V. Additional features include enable function, power good flag and output noise reduction pin.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Highly Accurate: ±2%
- Low Quiescent Current: 40μμ
- Dropout Voltage: 160mV@3.3V/1A
- Maximum Output Current: 1A
- Input Voltage Range: 2~6V
- Output Voltage Noise: 115μVrms@VOUT=3.3V
- High PSRR: 70dB@1kHz
- Temperature Stability: ±50ppm/℃
- ON/OFF Logic = Enable High
- Power Good and Enable Functions
- Standby Current: 10nA
- COUT Discharge Circuit when EN Disable is Active
- Protections Circuits: Current Limit, Short Circuit, and Thermal Protections
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
- RoHS compliant “Green”/Halogen Free
- 8-pin Exposed pad SOIC (ESOP8) packages, TO252-4, SOT89-3 and SOT23-5 packages
