Mingda MicroelectronicsDatasheet (PDF)

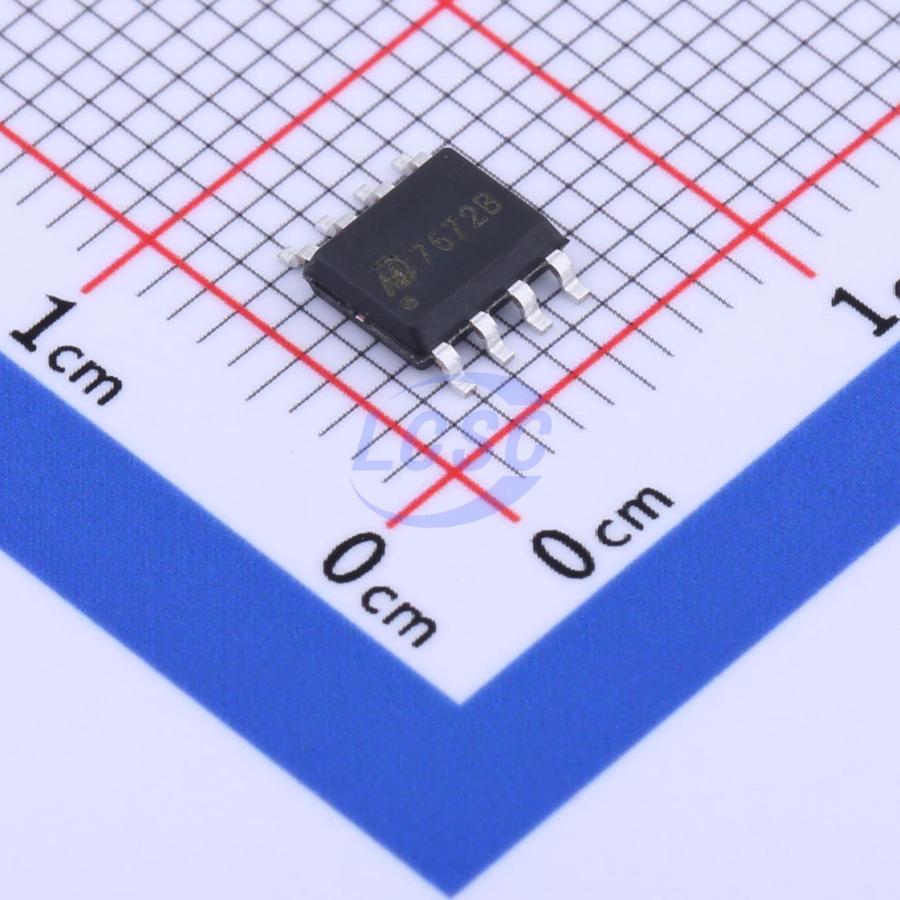

MD7672B50SF4
5V Positive Adjustable ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
ESOP-8RoHSActive
5V-Adjustable High-PSRR Low-Noise LDO 2A Voltage Regulator
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7672B50SF4
- Store part #
- C920526
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,860 in stock
#C920526
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.89 | ₹214.45 |
| 50+ | ₹33.83 | ₹1,691.50 |
| 150+ | ₹29.94 | ₹4,491.00 |
| 500+ | ₹25.08 | ₹12,540.00 |
| 2,500+ | ₹22.90 | ₹57,250.00 |
| 4,000+ | ₹21.60 | ₹86,400.00 |
5 × ₹42.89
₹214.45
excl. GST
₹253.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MD7672B50SF4
₹214.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 2A
- Features
- Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge;Noise bypass terminal
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
MD7672 series are highly accurate, low noise, high power supply rejection ratio (PSRR), low-dropout voltage regulator (LDO) with high output current capability manufactured in CMOS processes. It can deliver up to 2A of current while consuming 40μμ of quiescent current. Internal circuitry includes a reference voltage generator, an error amplifier, driver transistor, over-current protection circuit, short-circuit protection circuit, thermal shutdown circuit and a phase compensation circuit. The MD7672 operates by default as a fixed output voltage regulator (default output voltage: 5V) while usage of an external resistor divider allows adjustable out voltages as low as 0.7V. Additional features include enable function, power good flag and output noise reduction pin.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Highly Accurate: ±2%
- Low Quiescent Current: 40μμ
- Dropout Voltage: 250mV@2A
- Maximum Output Current: 2A
- Input Voltage Range: 2~6V
- Output Voltage Noise: 115μVrms@VOUT=3.3V
- High PSRR: 70dB@1kHz
- Temperature Stability: ±50ppm/℃
- ON/OFF Logic = Enable High
- Power Good and Enable Functions
- Standby Current: 10nA
- COUT Discharge Circuit when EN Disable is Active
- Protections Circuits: Current Limit, Short Circuit, and Thermal Protections
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
- RoHS compliant “Green”/Halogen Free
- 8-pin Exposed pad SOIC (ESOP8) and 4-pin TO252 packages
