Mingda MicroelectronicsDatasheet (PDF)

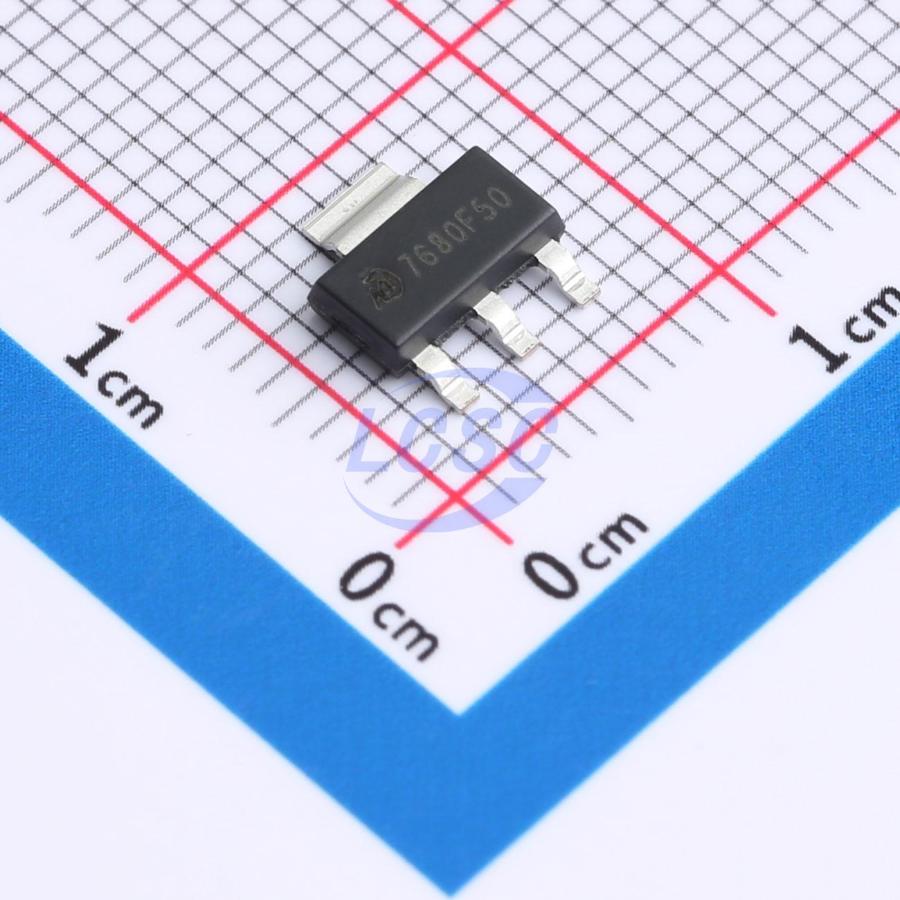

MD7680F50YA2
5V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3LRoHSActive
High Voltage Low Power Consumption LDO
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD7680F50YA2
- Store part #
- C42377924
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C42377924
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.83 | ₹119.15 |
| 50+ | ₹20.72 | ₹1,036.00 |
| 150+ | ₹19.40 | ₹2,910.00 |
| 500+ | ₹17.74 | ₹8,870.00 |
| 2,500+ | ₹17.00 | ₹42,500.00 |
| 5,000+ | ₹16.55 | ₹82,750.00 |
5 × ₹23.83
₹119.15
excl. GST
₹140.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MD7680F50YA2
₹119.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
MD7680 is a high voltage (up to 60V) ultra-low quiescent current low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 150mA of current while consuming only 2.3uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The MD7680 is designed specifically for applications where very-low is a critical parameter. This device maintains low quiescent current consumption even in dropout mode to further increase the battery life. When in shutdown or disabled mode, the device consumes less than 100nA even with input voltage of 60V that helps increase the shelf life of the battery.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Ultra-low Quiescent Current: 2.3uA
- Maximum Input Voltage: 60V
- Output Voltage Highly Accurate: ±2%
- Maximum Output Current: 150mA
- Dropout Voltage: 8mV@IOUT=1mA
- Temperature Stability: ±40ppm/℃
- ON/OFF Logic = Enable High
- Protections Circuits: Current Limiter, Foldback, Thermal shutdown
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
