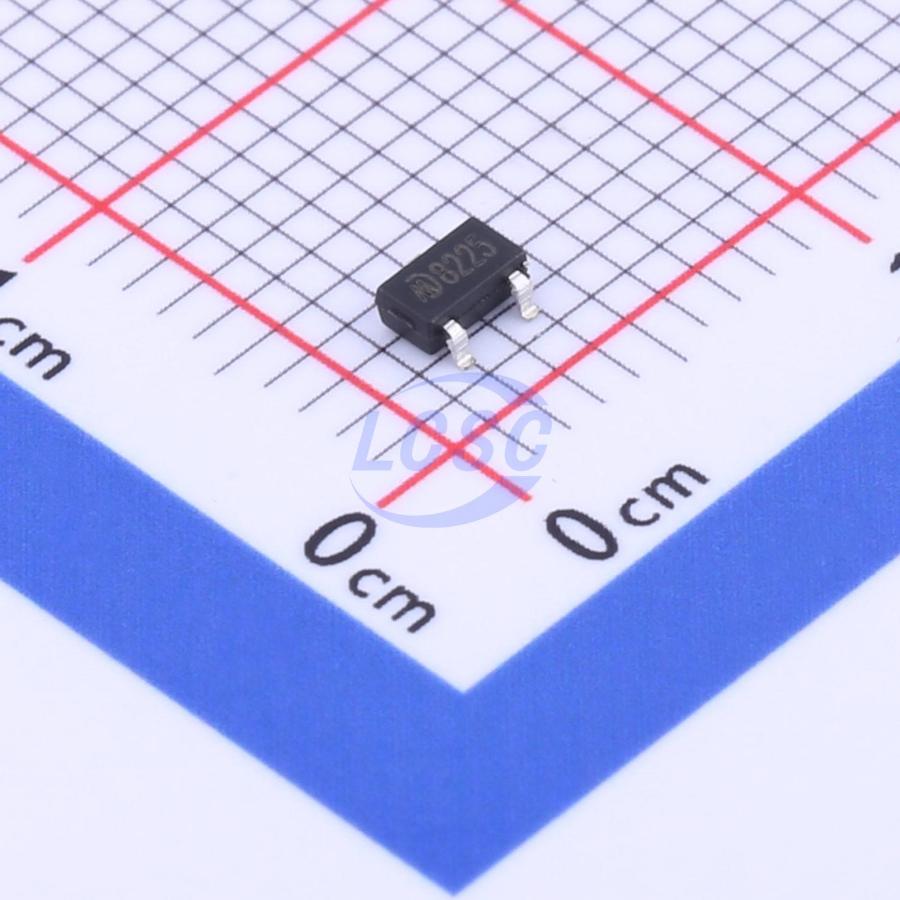

MD8225
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-3L
SOT-23-3LRoHSActive
High-voltage-tolerant, low-dropout, low-power-consumption LDO CMOS voltage regulator circuit
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD8225
- Store part #
- C920427
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C920427
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.81 | ₹94.05 |
| 50+ | ₹14.95 | ₹747.50 |
| 150+ | ₹13.02 | ₹1,953.00 |
| 500+ | ₹11.58 | ₹5,790.00 |
| 3,000+ | ₹9.35 | ₹28,050.00 |
| 6,000+ | ₹8.77 | ₹52,620.00 |
5 × ₹18.81
₹94.05
excl. GST
₹110.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD8225
₹94.05 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.4uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The MD82XX series are step-down voltage regulator circuits developed using CMOS technology, featuring high voltage tolerance, low dropout voltage, and low current consumption. The integrated low on-resistance transistor enables a low input-output voltage differential. With a maximum operating voltage of 40V, these devices are well-suited for applications requiring high voltage tolerance.
Applications
- Automotive electronics
- Smart meters, instrumentation
- Industrial control
Key features
- Output voltage accuracy: ±3%
- Input/output dropout voltage: mV@Iout=1mA
- Low quiescent current: 1.4μA
- Input voltage rating: 40V with regulated output
- Low output voltage temperature drift: 50ppm/°C
- Output current limiting protection
- Over-temperature shutdown protection
