MICRONEDatasheet (PDF)

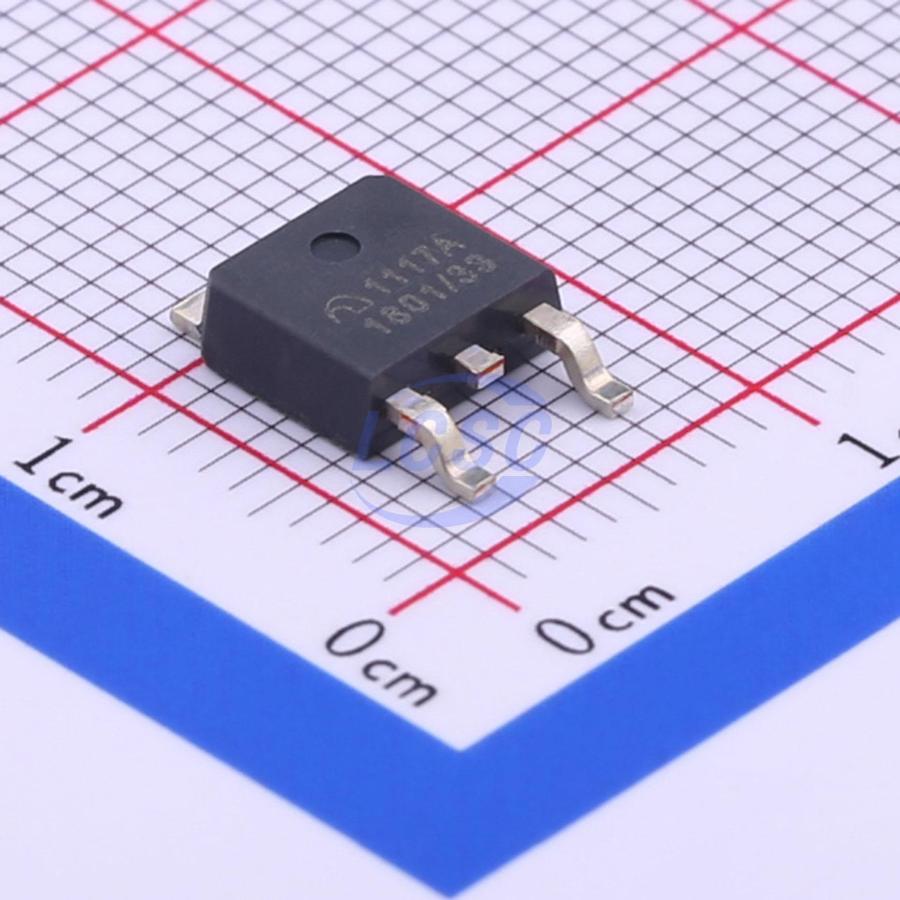

ME1117A33K3G
3.3V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2RoHSActive
1.0A Adjustable Voltage High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME1117A33K3G
- Store part #
- C427608
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,790 in stock
#C427608
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.04 | ₹60.20 |
| 50+ | ₹9.43 | ₹471.50 |
| 150+ | ₹8.14 | ₹1,221.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 2,500+ | ₹6.38 | ₹15,950.00 |
| 5,000+ | ₹5.98 | ₹29,900.00 |
5 × ₹12.04
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ME1117A33K3G
₹60.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.459 g
Overview
The ME1117 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.3 V at 1.0A. This series contains six fixed output voltages of 1.2 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 15 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±2.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME1117 series can operate with up to 15 V input. Devices are available in SOT223，TO252-2L.
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
- Battery Chargers
Key features
- Output Current in Excess of 1.0A
- Dropout Voltage: 1V (at IOUT = 100mA)
- Operating Voltage Range: 4.8V ~ 15V (ME1117A33)
- Highly Accuracy: ±2%
- Adjustable Output Voltage Option
- Standby Current: 3mA (TYP.)
- High Ripple Rejection: 60dB @ 1KHz(ME1117A33)
- Line Regulation: 0.1% (TYP.)
- Temperature Stability ≲ 0.5%
- Current Limit (1.3A)
- Thermal Shutdown Protection(160°C)
- Small Packages: SOT223、TO252-2L
