MICRONEDatasheet (PDF)

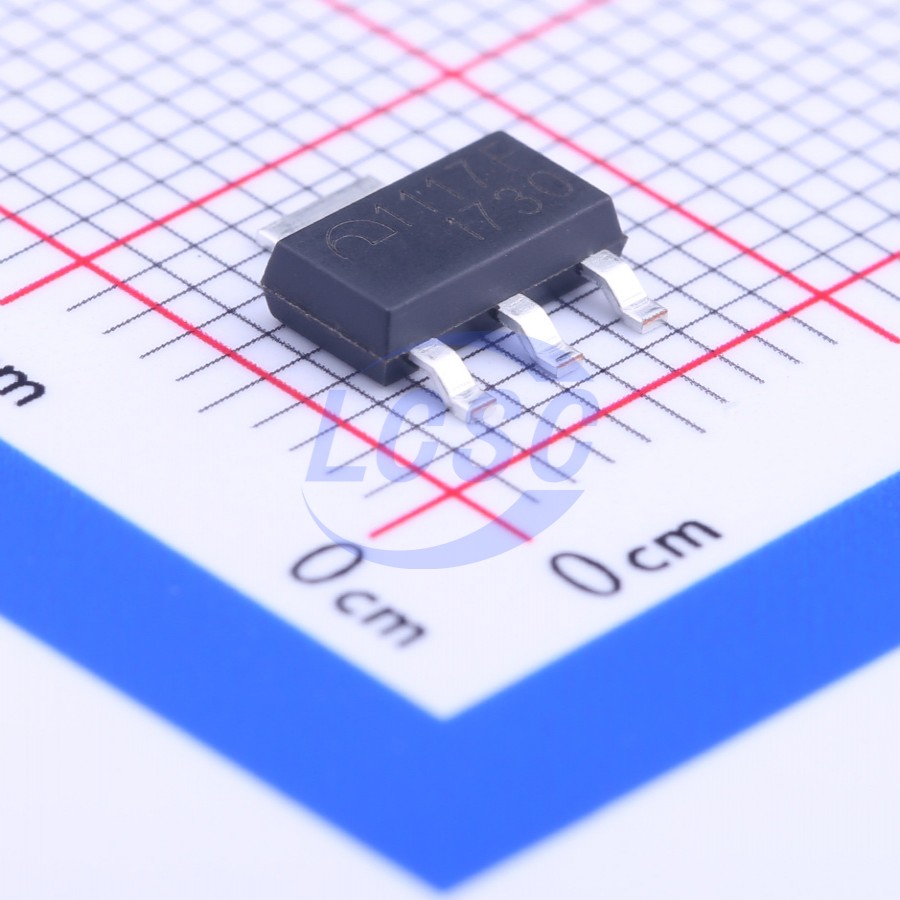

ME1117FB3G
1.25V~15V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1.0A Adjustable Voltage High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME1117FB3G
- Store part #
- C139611
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C139611
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.34 | ₹93.40 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
| 9,000+ | ₹4.72 | ₹42,480.00 |
10 × ₹9.34
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME1117FB3G
₹93.40 for 10 + GST
Specifications
- Output Voltage
- 1.25V~15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.24 g
Overview
The ME1117 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.3 V at 1.0A. This series contains six fixed output voltages of 1.2 V, 1.8 V, 2.5 V, 3.3 V, and 5.0 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 15 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±2.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME1117 series can operate with up to 15 V input. Devices are available in SOT223，TO252-2L.
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
- Battery Chargers
Key features
- Output Current in Excess of 1.0A
- Dropout Voltage: 1V (at IOUT = 100mA)
- Operating Voltage Range: 4.8V ~ 15V (ME1117A33)
- Highly Accuracy: ±2%
- Adjustable Output Voltage Option
- Standby Current: 3mA (TYP.)
- High Ripple Rejection: 60dB @ 1KHz(ME1117A33)
- Line Regulation: 0.1% (TYP.)
- Temperature Stability ≲ 0.5%
- Current Limit (1.3A)
- Thermal Shutdown Protection(160°C)
- Small Packages: SOT223、TO252-2L
