MICRONEDatasheet (PDF)

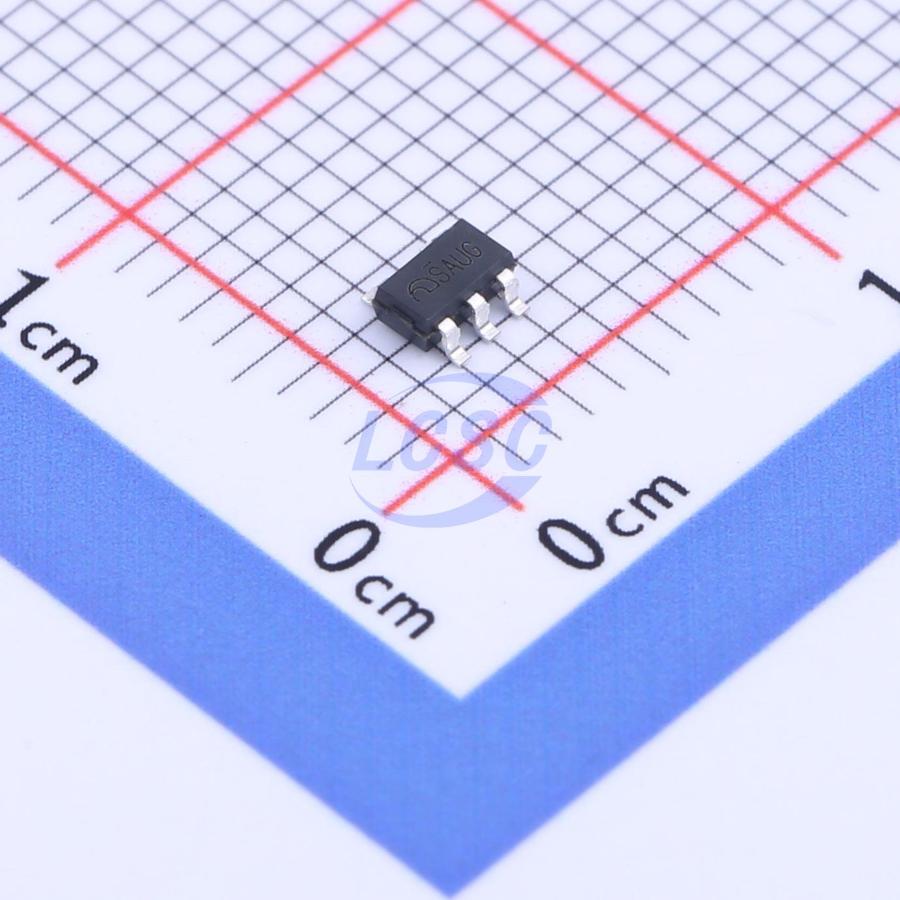

ME1501CM5G
High Side Switch 1 Channel 3A SOT-23-5
SOT-23-5RoHSActive
70mΩ, 2.1A, 5V USB high-side current-limiting load switch
- Manufacturer
- MICRONE
- Manufacturer part #
- ME1501CM5G
- Store part #
- C2835831
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C2835831
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.42 | ₹82.10 |
| 50+ | ₹13.06 | ₹653.00 |
| 150+ | ₹11.36 | ₹1,704.00 |
| 500+ | ₹10.11 | ₹5,055.00 |
| 3,000+ | ₹8.75 | ₹26,250.00 |
| 6,000+ | ₹8.24 | ₹49,440.00 |
5 × ₹16.42
₹82.10
excl. GST
₹96.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME1501CM5G
₹82.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active Low
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 70mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
ME1501 is a USB interface output protection IC designed for 5V 2.1A applications. It integrates overcurrent protection, short-circuit protection, over-temperature protection, and undervoltage protection. When overcurrent, short-circuit, or large capacitive load startup conditions occur at the output, it limits the current output to protect the upstream power supply.
Applications
- USB bus/self-powered hub
- USB peripherals
- Laptops, tablets
- Battery chargers
Key features
- 70mΩ on-resistance
- Current limit threshold deviation across full operating range: ±15%
- Fast response protection during output short circuit, suppressing inrush current
- No substrate diode, preventing reverse current flow when the device is shut down
