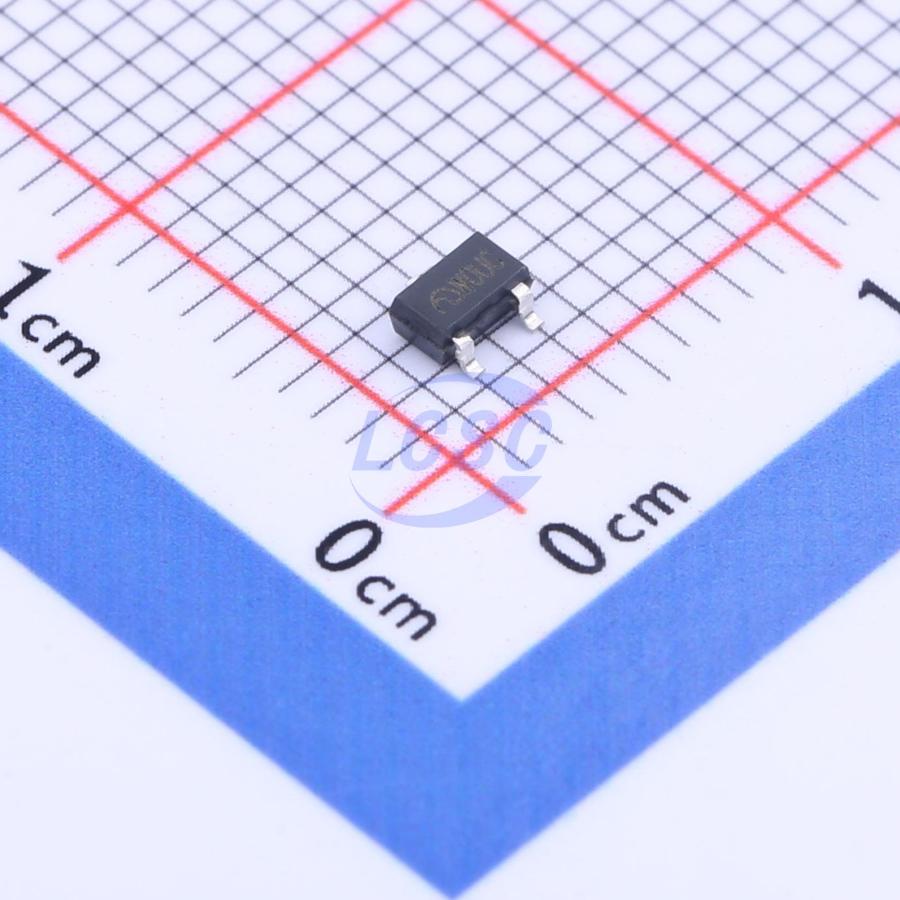

ME2188A45M3G
Boost Switching Regulator IC 4.5V 1 Output 300mA SOT-23
SOT-23RoHSActive
High-efficiency PFM synchronous boost DC-DC conversion chip
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2188A45M3G
- Store part #
- C2835781
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,985 in stock
#C2835781
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.46 | ₹57.30 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.87 | ₹35,220.00 |
5 × ₹11.46
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2188A45M3G
₹57.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 320kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 4.5V
- Output Current
- 300mA
- Quiescent Current
- 7.5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
ME2188 is a series of PFM synchronous boost DC-DC converter ICs featuring high conversion efficiency, low power consumption, and high operating frequency. The IC employs a PFM control circuit that automatically adjusts the duty cycle based on load current, delivering low ripple, high efficiency, and a wide output voltage range across the product series. The integrated synchronous switches and low quiescent current effectively improve DC-DC conversion efficiency and extend device operating life. With only three external components, the IC can boost a low input battery voltage up to the required operating voltage.
Applications
- Electronic devices powered by 1~2 dry-cell batteries
- Digital cameras
- LED flashlights
- LED lighting
- Blood pressure monitors
- Remote-controlled toys
- Wireless headphones
- Wireless mice and keyboards
- Medical devices
- Automotive anti-theft systems
- Chargers
- VCR
- PDAs and other handheld electronic devices
Key features
- High efficiency: 93%
- Low startup voltage: 0.9V @IOUT=1mA
- Low quiescent current: 7uA
- Frequency: 320KHz
- Selectable output voltage: 1.9V~5.0V
- Output accuracy: ±2%
- Output current: 300mA
- Low ripple, low noise
- Synchronous rectification
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME2188A50M3G#C427466MICRONE · SOT-23 | MICRONE | SOT-23 | 4,840 | ₹11.38 · 4,840 in stock | View |
 | ME2188A36M3G#C236773MICRONE · SOT-23 | MICRONE | SOT-23 | 5,490 | ₹10.09 · 5,490 in stock | View |
