MICRONEDatasheet (PDF)

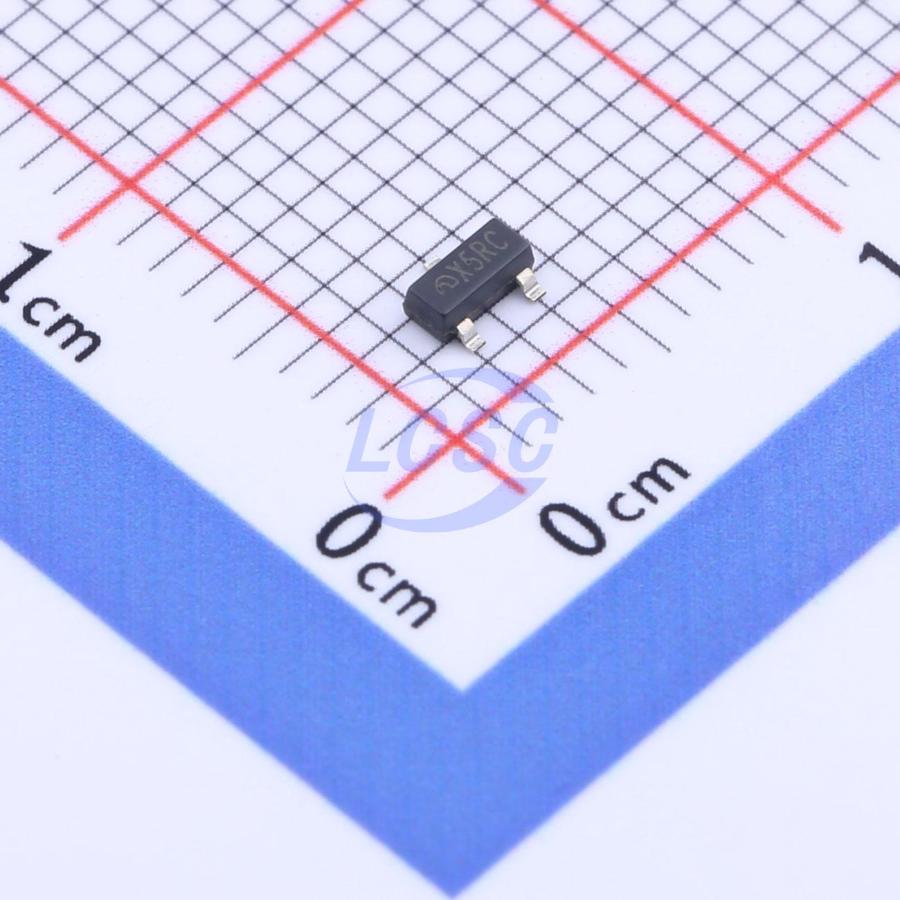

ME2805A263XG-N
200ms 700mV~6V 1 SOT-23 Supervisors
SOT-23RoHSActive
Voltage Detector with Delay Time circuit
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2805A263XG-N
- Store part #
- C2925760
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C2925760
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.98 | ₹59.80 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.63 | ₹10,890.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.98
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2805A263XG-N
₹59.80 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- standby current
- 1.3uA
- Voltage - Supply
- 700mV~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.135 g
Overview
ME2805-N Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using CMOS process. Internal oscillator and counter timer can delay the release signal without external parts. Detect voltage is extremely accurate with minimal temperature drift. CMOS output configurations are available.
Applications
- Microprocessor reset circuitry
- Charge voltage monitors
- Memory battery back-up switch circuits
- Power failure detection circuits
Key features
- Highly accuracy: ± 1%
- Low power consumption: TYP 1.1uA (VIN = 3V)
- Detect voltage range: 1.0V ~ 5.5V (step 0.1V)
- Operating voltage range: 0.7V ~ 6V
- Detect voltage temperature characteristics: Better than ±100ppm/℃
- Output configuration: CMOS
- Delay circuit: Fix delay time
