MICRONEDatasheet (PDF)

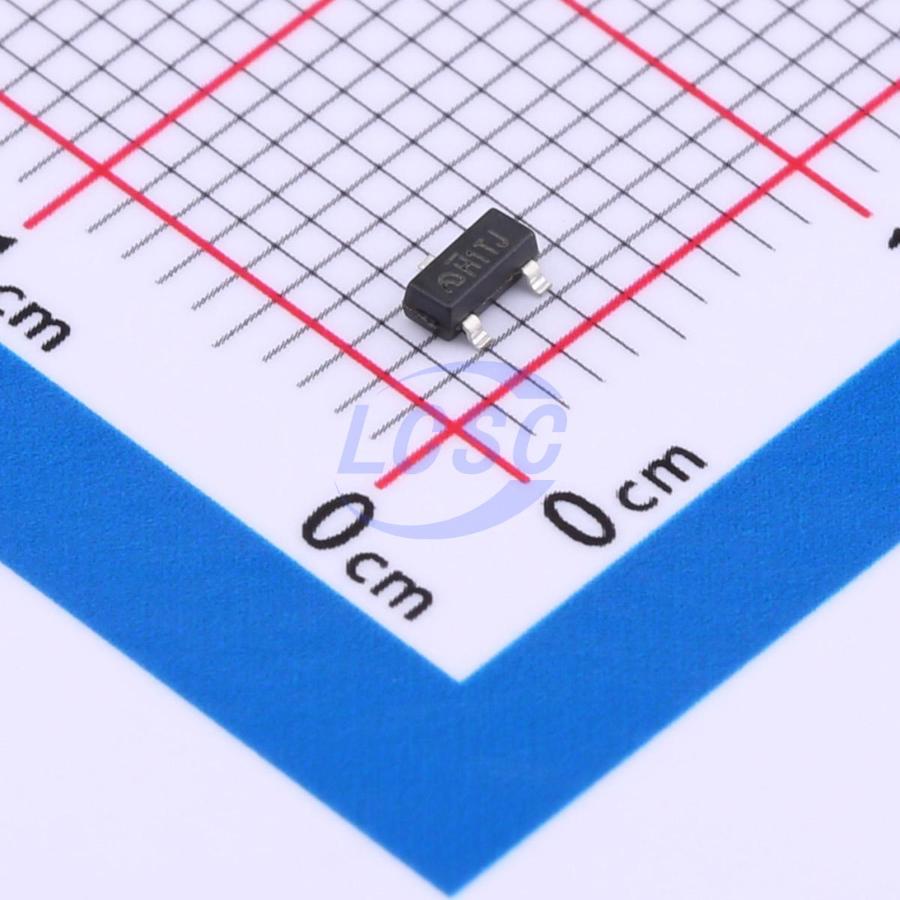

ME2806A263XG
50ms Active Low 700mV~7V 1 SOT-23 Supervisors
SOT-23RoHSActive
Ultra-small package High-precision Voltage Detector with delay circuit
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2806A263XG
- Store part #
- C2927383
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,360 in stock
#C2927383
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.84 | ₹11,520.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2806A263XG
₹63.40 for 10 + GST
Specifications
- Reset Timeout
- 50ms
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 700mV~7V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
ME2806 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using NMOS process. Internal oscillator and counter timer can delay the release signal without external parts. Detect voltage is extremely accurate with minimal temperature drift. NMOS output configurations are available.
Applications
- Power monitor for portable equipment such as notebook computers, digital still cameras, PDA, and cellular phones
- Constant voltage power monitor for cameras, video equipment and communication devices
- Power monitor for microcomputers and reset for CPUs
- System battery life and charge voltage monitors
Key features
- Highly accuracy: ±2%
- Low power consumption: TYP 0.9uA (VDD = 3V)
- Detect voltage range: 1.0V ~ 6.5V in 0.1V increments
- Operating voltage range: 0.7V ~ 7V
- Detect voltage temperature characteristics: TYP ±100ppm/℃
- Output configuration: NMOS
- Package: SOT-23-3, SOT-23-5, SOT-23
