MICRONEDatasheet (PDF)

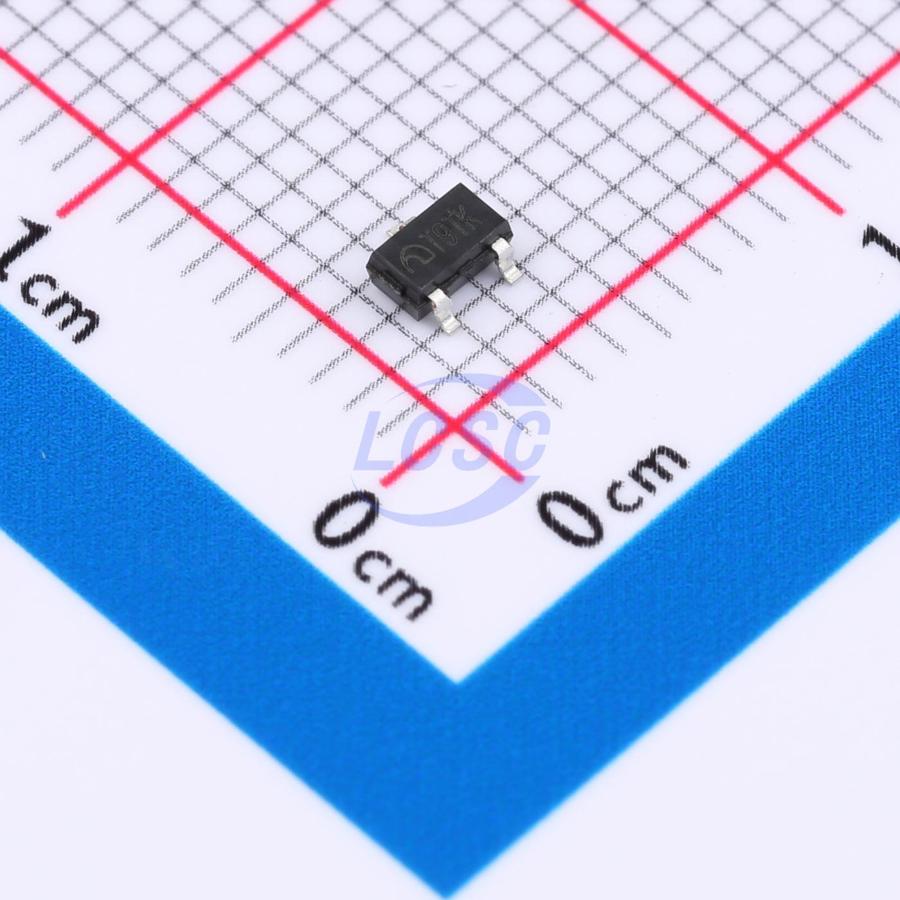

ME2807A36M3G
1.5V~18V 1 SOT-23 Supervisors
SOT-23RoHSActive
Voltage Detectors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2807A36M3G
- Store part #
- C2835794
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C2835794
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.18 | ₹91.80 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.30 | ₹1,890.00 |
| 3,000+ | ₹5.58 | ₹16,740.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
| 9,000+ | ₹4.72 | ₹42,480.00 |
10 × ₹9.18
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2807A36M3G
₹91.80 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- standby current
- 2.1uA
- Voltage - Supply
- 1.5V~18V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
ME2807 Series are a set of three-terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.0V to 7.0V. The voltage detectors consist of a high precision and low power consumption standard voltage source, a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption.
Applications
- battery checkers
- Level selectors
- Power failure detectors
- Microcomputer reset
- Battery backup of Memories
- Store non-volatile RAM signal protectors
Key features
- Highly accuracy Detection voltage: ± 1%
- Low power consumption: TYP 1.8uA (Vin = 3V)
- Detection voltage range: 2.0V ~ 7.0V in 0.1V increments
- Operating voltage range: 1.5V ~ 18V
- Detect voltage temperature characteristics: TYP ± 0.9mV/℃
- Output configuration: CMOS
