MICRONEDatasheet (PDF)

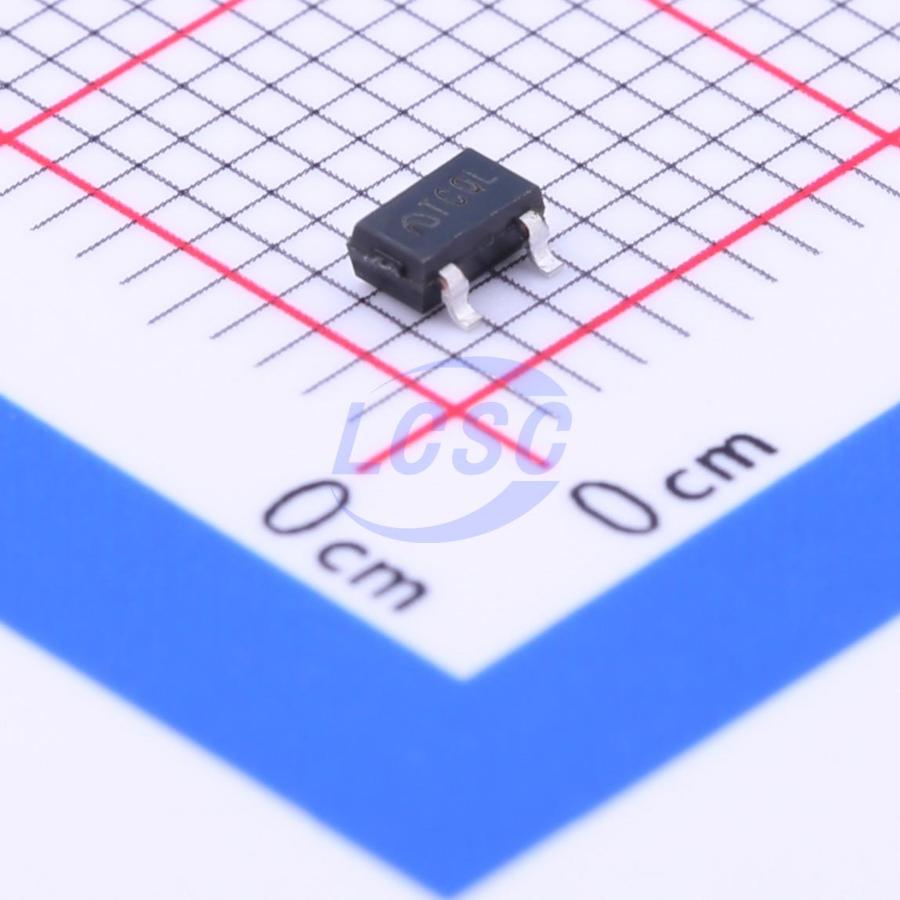

ME2807A45M3G
1.5V~18V 1 SOT-23 Supervisors
SOT-23RoHSActive
Voltage Detectors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2807A45M3G
- Store part #
- C236752
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C236752
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.56 | ₹57.80 |
| 50+ | ₹9.29 | ₹464.50 |
| 150+ | ₹8.15 | ₹1,222.50 |
| 500+ | ₹7.30 | ₹3,650.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 6,000+ | ₹5.82 | ₹34,920.00 |
5 × ₹11.56
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2807A45M3G
₹57.80 for 5 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- standby current
- 2.5uA
- Voltage - Supply
- 1.5V~18V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
ME2807 Series are a set of three-terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.0V to 7.0V. The voltage detectors consist of a high precision and low power consumption standard voltage source, a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption.
Applications
- battery checkers
- Level selectors
- Power failure detectors
- Microcomputer reset
- Battery backup of Memories
- Store non-volatile RAM signal protectors
Key features
- Highly accuracy Detection voltage: ± 1%
- Low power consumption: TYP 1.8uA (Vin = 3V)
- Detection voltage range: 2.0V ~ 7.0V in 0.1V increments
- Operating voltage range: 1.5V ~ 18V
- Detect voltage temperature characteristics: TYP ± 0.9mV/℃
- Output configuration: CMOS
