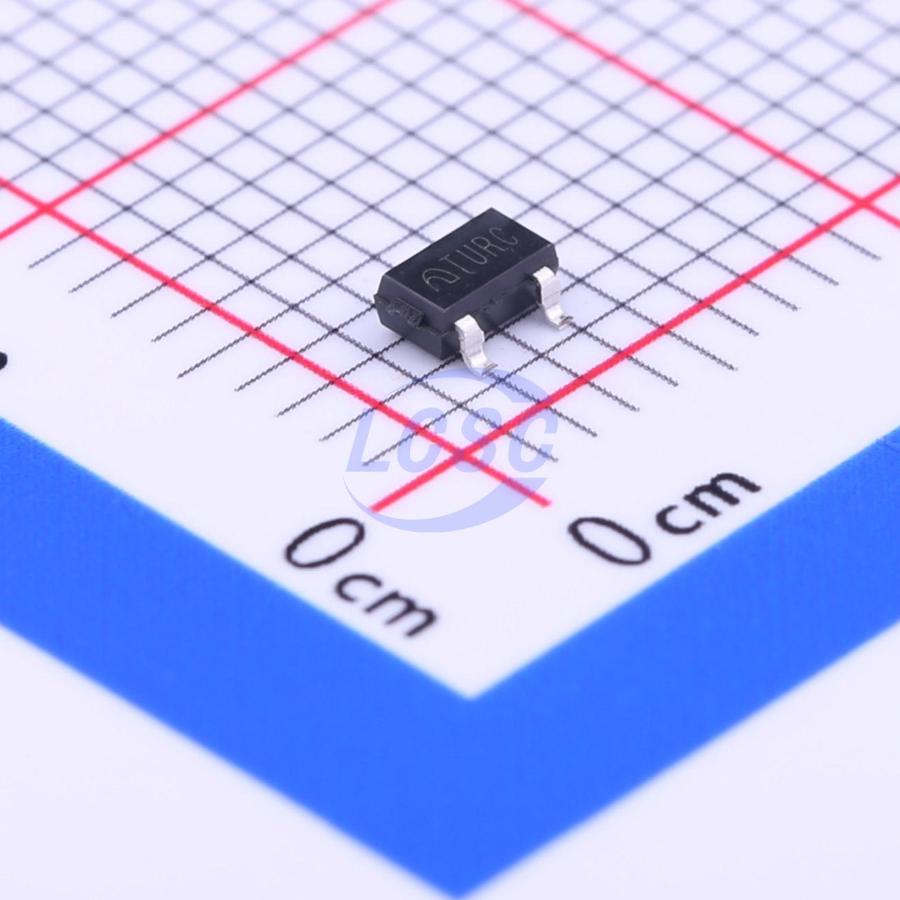

MICRONEDatasheet (PDF)
ME2808A35M3G
Active Low 1.5V~18V 1 SOT-23 Supervisors
SOT-23RoHSActive
Voltage Detectors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2808A35M3G
- Store part #
- C236744
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C236744
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.06 | ₹30.30 |
| 50+ | ₹5.93 | ₹296.50 |
| 150+ | ₹5.85 | ₹877.50 |
| 500+ | ₹5.77 | ₹2,885.00 |
5 × ₹6.06
₹30.30
excl. GST
₹35.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2808A35M3G
₹30.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2.1uA
- Voltage - Supply
- 1.5V~18V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
ME2808 Series are a set of three-terminal low power voltage detectors implemented in NMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 2.0V to 7.0V. The voltage detectors consist of a high precision and low power consumption standard voltage source, a comparator, hysteresis circuit, and an output driver. NMOS technology ensures low power consumption.
Applications
- battery checkers
- Level selectors
- Power failure detectors
- Microcomputer reset
- Battery backup of Memories
- Store non - volatile RAM signal protectors
Key features
- Highly accuracy: ± 1%
- Low power consumption: TYP 1.8uA (VIN = 3V)
- Detect voltage range: 2.0V ~ 7.0V in 0.1V increments
- Operating voltage range: 1.5V ~ 18V
- Detect voltage temperature characteristics: TYP ± 0.9mV/℃
- Output configuration: NMOS
- Package: SOT23, SOT23 - 3, SOT23 - 5, SOT89 - 3, TO - 92
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME2808A36M3G#C236743MICRONE · SOT-23 | MICRONE | SOT-23 | 1,430 | ₹9.87 · 1,430 in stock | View |
 | ME2808A36XG#C910806MICRONE · SOT-23 | MICRONE | SOT-23 | 2,980 | ₹9.35 · 2,980 in stock | View |
