MICRONEDatasheet (PDF)

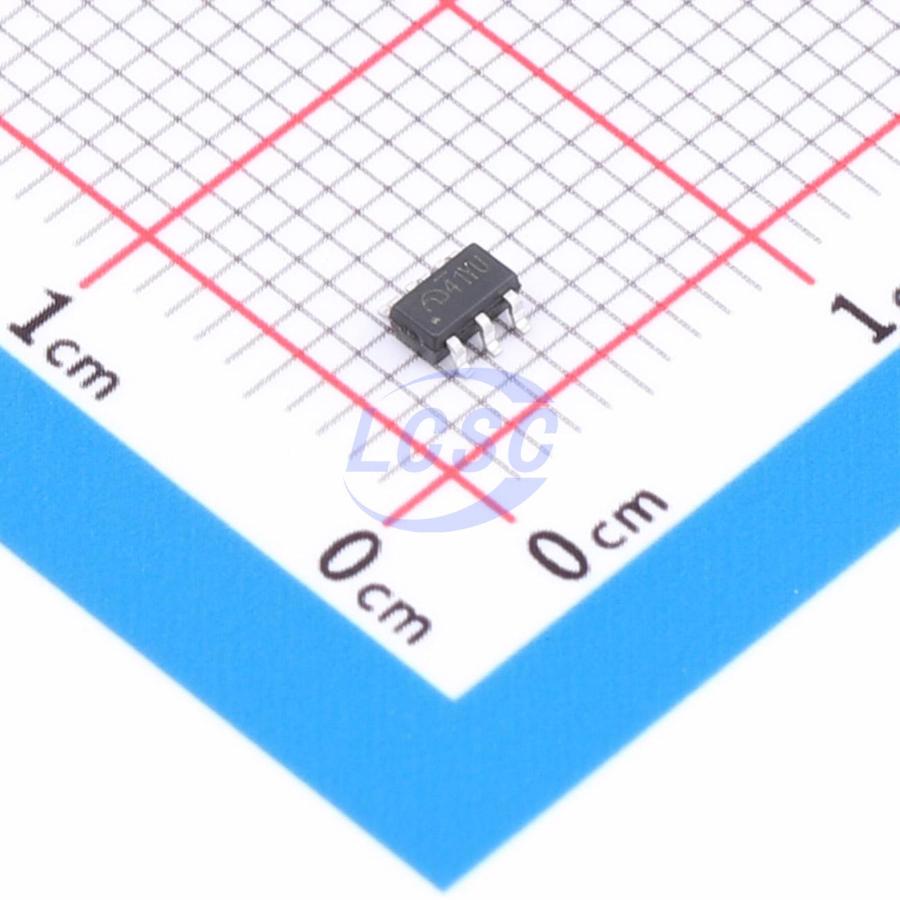

ME3182AM6G
Step-down type 650kHz Adjustable 2A 600mV~12V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MICRONE
- Manufacturer part #
- ME3182AM6G
- Store part #
- C49319019
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C49319019
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.37 | ₹43.70 |
| 100+ | ₹4.27 | ₹427.00 |
| 300+ | ₹4.21 | ₹1,263.00 |
| 1,000+ | ₹4.14 | ₹4,140.00 |
10 × ₹4.37
₹43.70
excl. GST
₹51.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME3182AM6G
₹43.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 650kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.1V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 600mV~12V
- Quiescent Current
- 90uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
ME3182 is a synchronous step-down DC-DC converter IC integrating two built-in NMOSFET power switches with low on-resistance. The on-resistance of the high-side and low-side switches are 70mΩ and 110mΩ respectively. The device is capable of delivering 2A load current. Under light-load conditions, ME3182 operates in PFM mode, achieving excellent efficiency performance. As the load current increases, ME3182 transitions to quasi-PWM mode with a fixed switching frequency of 650KHz. ME3182 integrates over-temperature protection, input undervoltage lockout, cycle-by-cycle current limiting, and output short-circuit protection to enhance system reliability.
Applications
- Set-top box
- LCD TV
- DSL modem
- Digital TV
Key features
- Input voltage range: 4.1V ~ 18V
- Shutdown current: 6uA
- Quiescent current: 90uA
- On-resistance (low-side/high-side): 70mΩ/110mΩ
- Switching frequency: 650KHz @ duty cycle = 50%
- Reference voltage: 0.6V ± 2%
- Cycle-by-cycle peak current limit: 3.3A
- Cycle-by-cycle valley current limit: 2.3A
- Short-circuit protection: hiccup mode
- Over-temperature protection: 155℃
