MICRONEDatasheet (PDF)

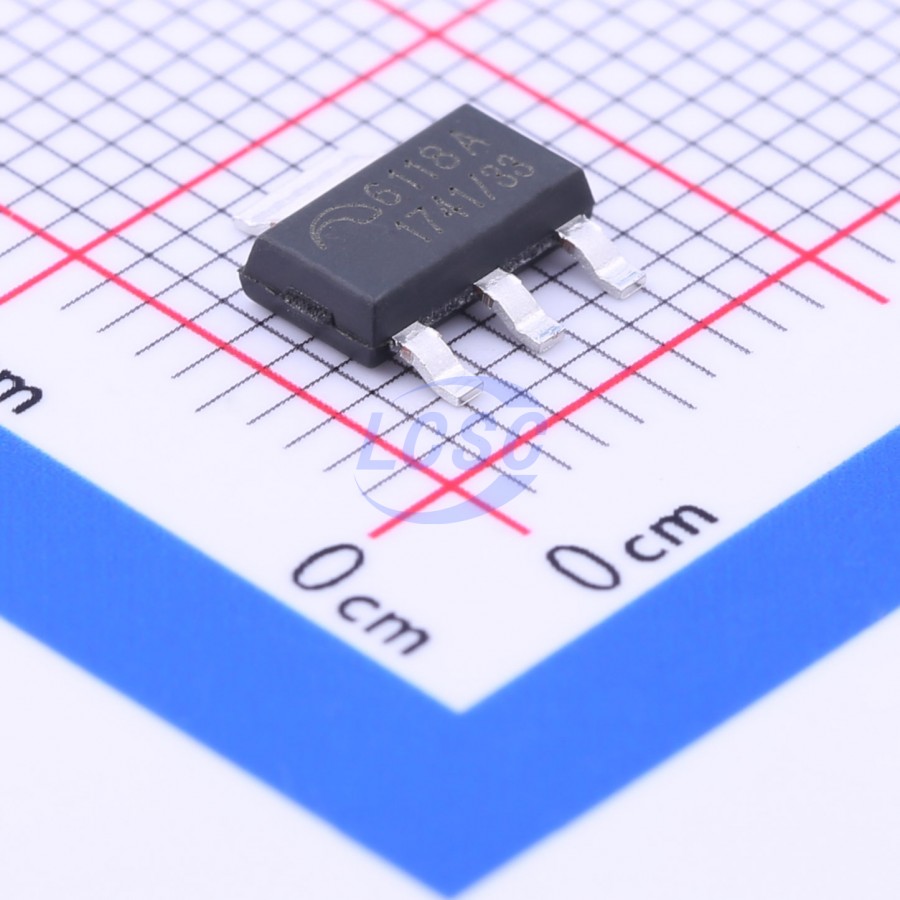

ME6118A33B3G
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1A Adjustable Voltage High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6118A33B3G
- Store part #
- C151063
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,535 in stock
#C151063
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.88 | ₹494.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.79 | ₹3,895.00 |
| 3,000+ | ₹6.83 | ₹20,490.00 |
| 6,000+ | ₹6.47 | ₹38,820.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6118A33B3G
₹61.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 53uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 800mA
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.215 g
Overview
The ME6118 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.3V at 1A （ME6118A33）. This series contains four fixed output voltages of 1.2V, 1.8V, 2.5V and 3.3V that have no minimum load requirement to maintain regulation. On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME6118 series can operate with up to 18V input.
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
- Battery Chargers
Key features
- Output Current in Excess of 1A
- Dropout Voltage: 80mV@ IOUT = 100mA （ME6118A33）
- Operating Voltage Range: 2.5V ~ 18V
- Highly Accuracy: ±2%
- Adjustable Output Voltage Option
- Standby Current: 52uA（TYP.）
- High Ripple Rejection: 70dB@1KHz（ME6118A33）
- Line Regulation: 2mV（TYP.）
- Temperature Stability ≲0.5%
- Thermal Shutdown Protection：160 °C
