MICRONEDatasheet (PDF)

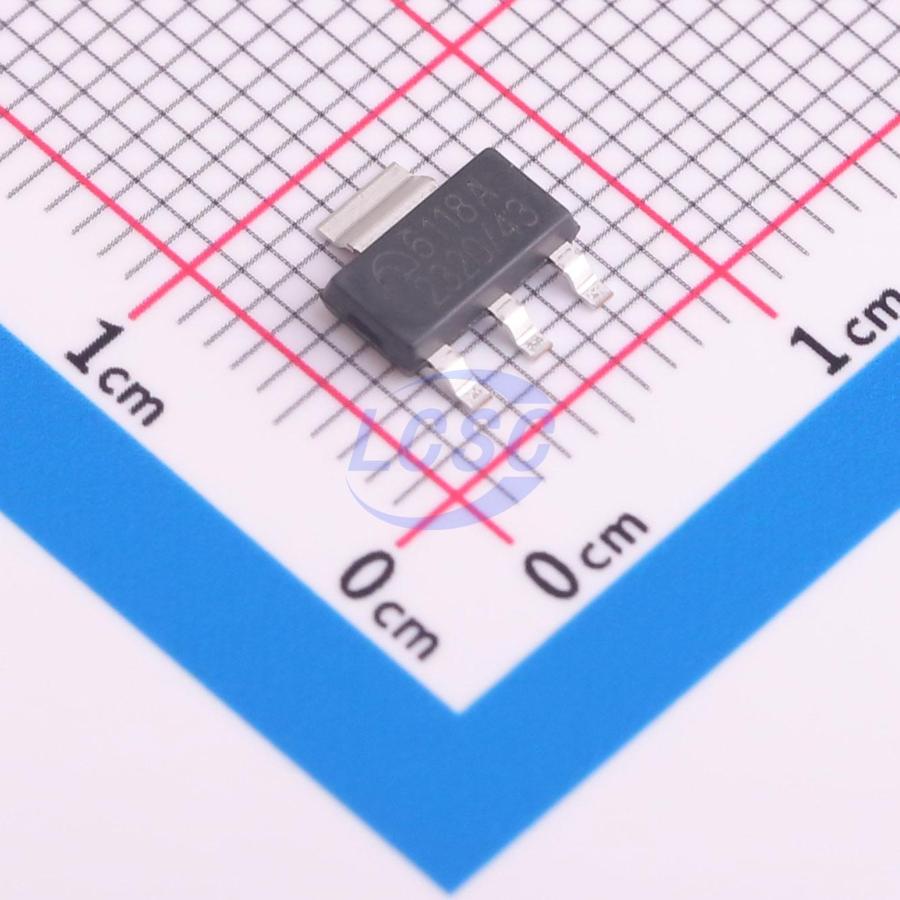

ME6118A43B3G
4.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1A High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6118A43B3G
- Store part #
- C2683413
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,640 in stock
#C2683413
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.62 | ₹48.10 |
| 50+ | ₹7.50 | ₹375.00 |
| 150+ | ₹6.44 | ₹966.00 |
| 500+ | ₹5.65 | ₹2,825.00 |
| 3,000+ | ₹5.01 | ₹15,030.00 |
| 6,000+ | ₹4.68 | ₹28,080.00 |
5 × ₹9.62
₹48.10
excl. GST
₹56.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6118A43B3G
₹48.10 for 5 + GST
Specifications
- Output Voltage
- 4.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 52uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.242 g
Overview
The ME6118 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.3V at 1A（ME6118 A33）. This series contains eight fixed output voltages of 0.75V, 1.2V, 1.8V, 2.5V, 3.3V, 3.6V, 4.3V and 5.0V that have no minimum load requirement to maintain regulation. On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME6118 series can operate with up to 18V input.
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
- Battery Chargers
Key features
- Output Current in Excess of 1A
- Dropout Voltage: 80mV @ IOUT = 100mA （ME6118A33）
- Operating Voltage Range: 2.5V ~ 18V (Vout≥1.2V); 2.5V ~ 8V (Vout = 0.75V)
- Highly Accuracy: ±2%
- Standby Current: 52uA（TYP.）
- High Ripple Rejection: 70dB @ 1KHz（ME6118A33）
- Line Regulation: 2mV（TYP.）
- Temperature Stability ≲0.5%
- Thermal Shutdown Protection: 160°C
