MICRONEDatasheet (PDF)

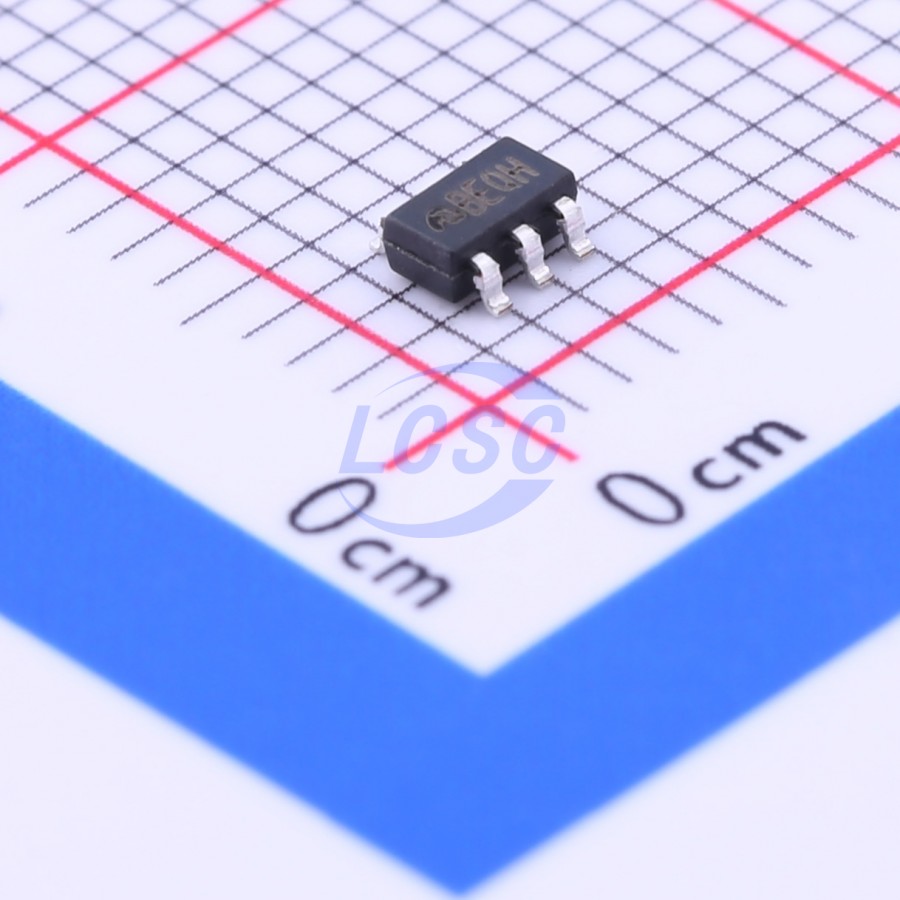

ME6119C40M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23-5
SOT-23-5RoHSActive
LDO with 400mA load capacity, 18V voltage withstand, low dropout and fast response
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6119C40M5G
- Store part #
- C236717
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,500 in stock
#C236717
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.22 | ₹66.10 |
| 50+ | ₹10.45 | ₹522.50 |
| 150+ | ₹9.06 | ₹1,359.00 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 3,000+ | ₹7.20 | ₹21,600.00 |
| 6,000+ | ₹6.79 | ₹40,740.00 |
5 × ₹13.22
₹66.10
excl. GST
₹78.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6119C40M5G
₹66.10 for 5 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
ME6119 is a high-precision, low-noise, low-dropout LDO linear regulator with comprehensive protection features. It supports an input voltage up to 18V and output voltage accuracy of ±2%. The IC integrates current limiting protection, short-circuit protection, and thermal shutdown circuits to effectively prevent damage caused by overheating or high-current load conditions. An EN pin for the ON/OFF circuit allows the output voltage to be disabled, significantly reducing system power consumption.
Applications
- Consumer and industrial equipment power supply
- Post-regulation for switching power supplies
- Driver controllers
Key features
- Maximum output current: 400mA
- Low dropout: 104mV @ IOUT = 100mA
- Operating voltage range: 2.5 - 18V
- Output voltage accuracy: ±2%
- Low quiescent current: 60uA (typical)
- Line regulation: 30mV (typical)
- Temperature stability: ≤0.5%
- Thermal shutdown protection: 164°C
