UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
MICRONEDatasheet (PDF)

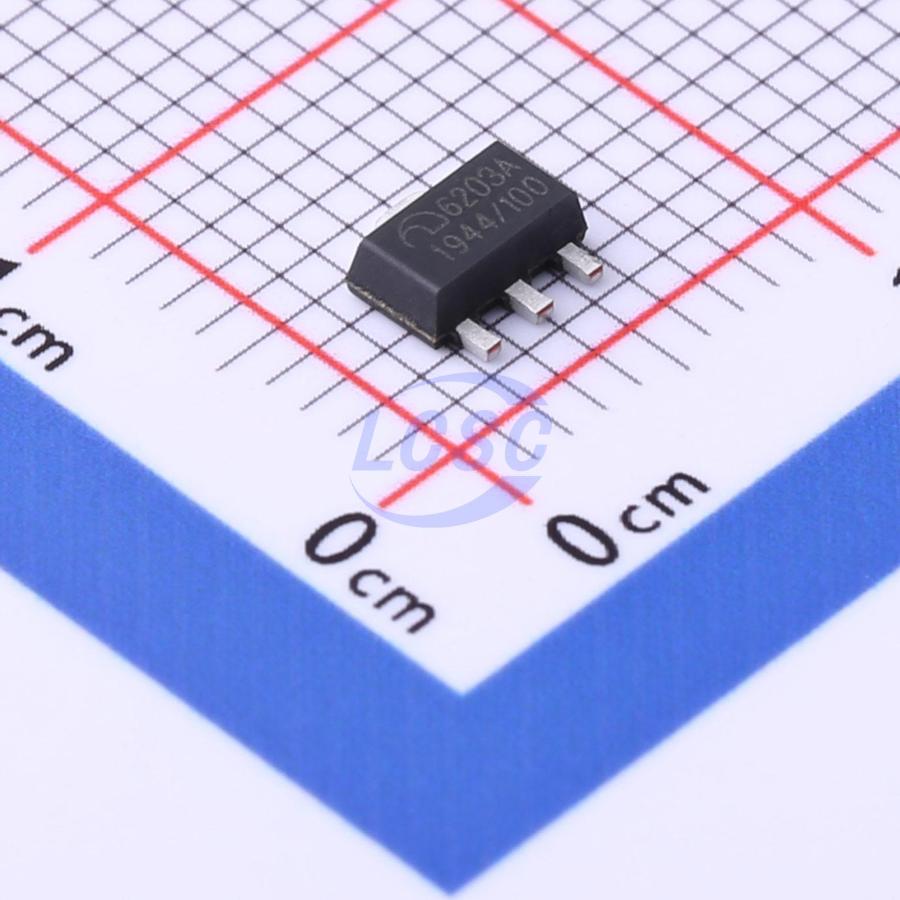

ME6203A100PG
10V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
High Input Voltage LDo Linear Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6203A100PG
- Store part #
- C2683408
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,725 in stock
#C2683408
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.17 | ₹80.85 |
| 50+ | ₹12.78 | ₹639.00 |
| 150+ | ₹11.09 | ₹1,663.50 |
| 1,000+ | ₹9.82 | ₹9,820.00 |
| 2,000+ | ₹8.80 | ₹17,600.00 |
| 5,000+ | ₹8.30 | ₹41,500.00 |
5 × ₹16.17
₹80.85
excl. GST
₹95.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6203A100PG
₹80.85 for 5 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 40V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
ME6203 series are low-dropout linear voltage regulators with a built-in voltage reference module, error correction module and phase compensation module. ME6203 series are based on the CMOS process and allow high voltage input with low quiescent current. This series can deliver 100mA output current and allow an input voltage as high as 40V. This series has the function of internal feedback resistor setting from 1.8V to 12V. There are two output accuracy levels: ±1% (VOUT = 3.3V, 5.0V, 10.0V) and ±2% (other voltage values).
Applications
- Electronic weighbridge
- SCM
- Phones, cordless phones
- Security Products
- Water meters, power meters
Key features
- High output accuracy: ± 1% (VOUT = 3.3V、5.0V、10V), ±2% (Others)
- Input voltage: up to 40V
- Output voltage: 1.8V~12V
- Ultra-low quiescent current (Typ. = 3μA)
- Output Current: IOUT = 100mA (When VIN = 5.5V and VOUT = 3.3V)
- Short-circuit Current: (Typ. = 20mA)
- Low temperature coefficient
- Ceramic capacitor can be used
