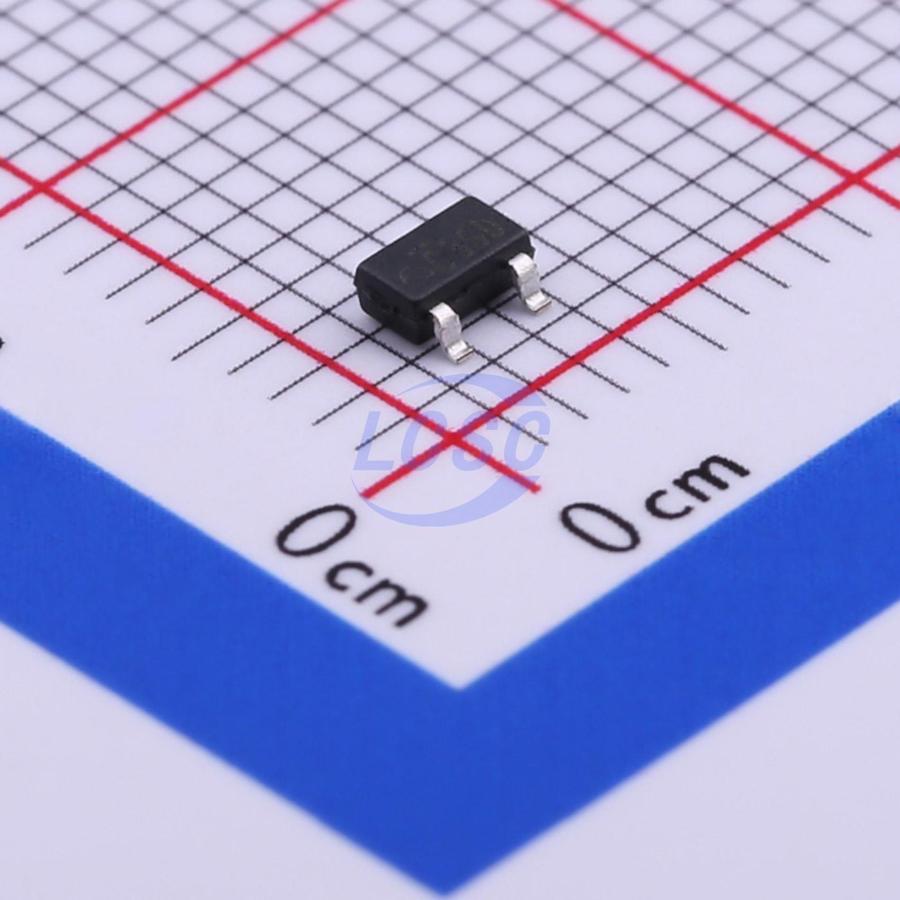

MICRONEDatasheet (PDF)
ME6203A30M3G
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
100 mA, High Input Voltage LDO Linear Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6203A30M3G
- Store part #
- C427592
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C427592
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.10 | ₹70.50 |
| 50+ | ₹11.30 | ₹565.00 |
| 150+ | ₹9.90 | ₹1,485.00 |
| 500+ | ₹8.84 | ₹4,420.00 |
| 3,000+ | ₹7.30 | ₹21,900.00 |
| 6,000+ | ₹6.89 | ₹41,340.00 |
5 × ₹14.10
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6203A30M3G
₹70.50 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+150℃@(Tj)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
ME6203 series are low-dropout linear voltage regulators with a built-in voltage reference module, error correction module and phase compensation module. ME6203 series allow high voltage input with low quiescent current. This series can deliver 100mA output current and allow an input voltage as high as 40V. This series has the function of internal feedback resistor setting from 2.1V to 12V. The output accuracy is ±2%.
Applications
- Electronic weighbridge
- SCM
- Phones, cordless phones
- Security Products
- Water meters, power meters
Key features
- High output accuracy: ±2%
- Input voltage: up to 40 V
- Output voltage: 2.1V ~ 12V
- Ultra-low quiescent current (Typ.=3μA)
- Output Current: lOUT = 100mA (When VIN = 5.5V and VOUT = 3.3V)
- Short-circuit Current: (Typ.=20mA)
- Low temperature coefficient
- Ceramic capacitor can be used
