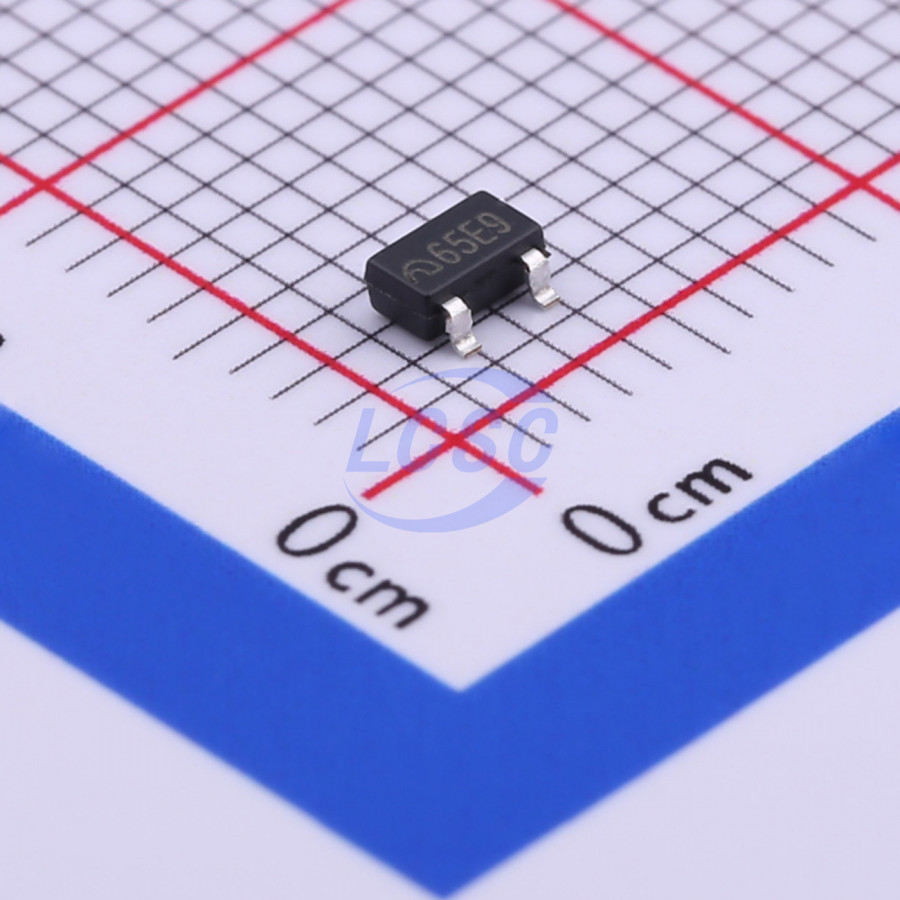

ME6206A15M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23RoHSActive
Positive voltage regulator compatible with low-power, low-ESR capacitors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A15M3G
- Store part #
- C236711
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C236711
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.91 | ₹79.10 |
| 100+ | ₹6.35 | ₹635.00 |
| 300+ | ₹5.57 | ₹1,671.00 |
| 3,000+ | ₹4.55 | ₹13,650.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.91
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A15M3G
₹79.10 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate: ±2%
- Output voltage range: 1.5V ~ 5.0V (selectable in 0.1V steps)
- Low power consumption: 8uA(TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Input voltage: up to 6V
- Dropout voltage: 0.2V at 100mA and 0.40V at 200mA
- Excellent Input Stability
- Be available to regulator and reference voltage
- Packages: SOT23 - 3, SOT89 - 3, SOT23, TO - 92
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6206A15XG#C236709MICRONE · SOT-23 | MICRONE | SOT-23 | 3,150 | ₹6.36 · 3,150 in stock | View |
