MICRONEDatasheet (PDF)
ME6206A18M3G
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap. Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A18M3G
- Store part #
- C161344
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C161344
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.65 | ₹66.50 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 3,000+ | ₹3.73 | ₹11,190.00 |
| 6,000+ | ₹3.32 | ₹19,920.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.65
₹66.50
excl. GST
₹78.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

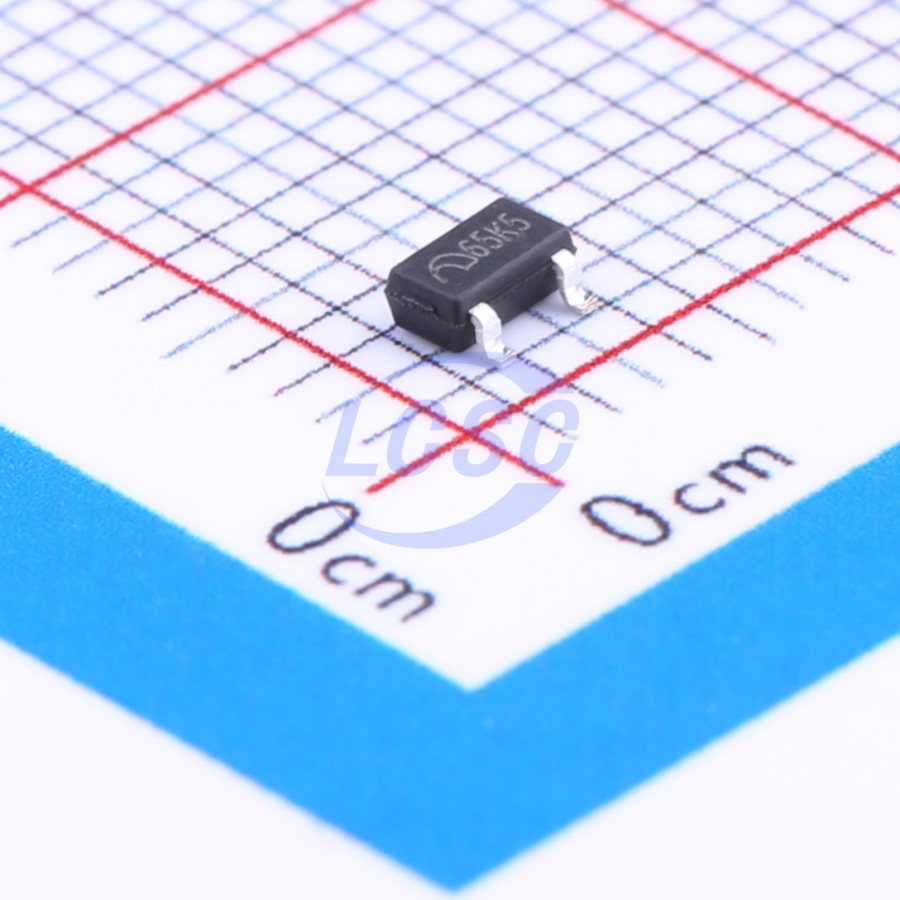

ME6206A18M3G
₹66.50 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate: ±2%
- Output voltage range: 1.5V ~ 5.0V (selectable in 0.1V steps)
- Low power consumption: 8uA(TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Input voltage: up to 6 V
- Excellent Input Stability
- Be available to regulator and reference voltage
- Packages: SOT23 - 3, SOT89 - 3, SOT23, TO - 92
