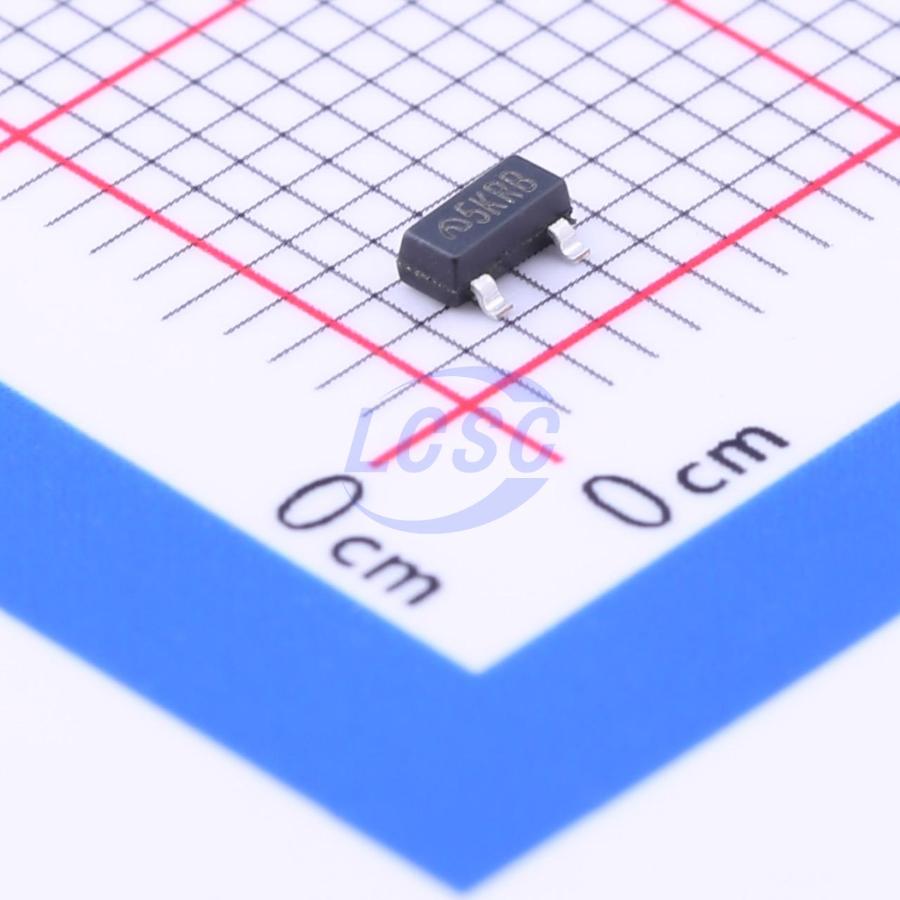

ME6206A25XG
2.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap.Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A25XG
- Store part #
- C236704
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,040 in stock
#C236704
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.11 | ₹102.20 |
| 200+ | ₹4.00 | ₹800.00 |
| 600+ | ₹3.39 | ₹2,034.00 |
| 3,000+ | ₹2.91 | ₹8,730.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
| 21,000+ | ₹2.42 | ₹50,820.00 |
20 × ₹5.11
₹102.20
excl. GST
₹120.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A25XG
₹102.20 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 200mV @ Iload = 100mA
- Input Voltage Range: up to 6.0V
- Highly Accuracy: ±2%
- Low Power Consumption: 8uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
