MICRONEDatasheet (PDF)

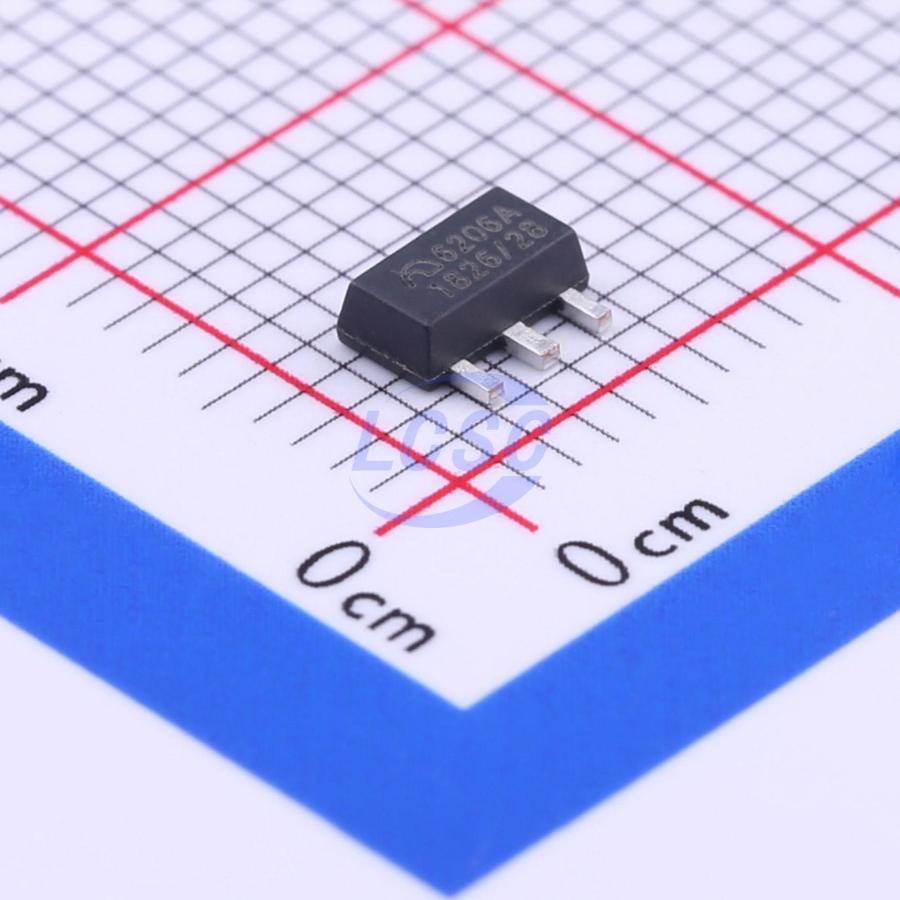

ME6206A28PG
2.8V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
Low power consumption, Low ESR Cap. Compatible Positive Voltage Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A28PG
- Store part #
- C94055
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,800 in stock
#C94055
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 1,000+ | ₹5.68 | ₹5,680.00 |
| 5,000+ | ₹5.05 | ₹25,250.00 |
| 10,000+ | ₹4.75 | ₹47,500.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6206A28PG
₹97.50 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.132 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate: ± 2%
- Output voltage range: 1.5 V ~ 5.0 V (selectable in 0.1 V steps)
- Low power consumption: 8 μA (TYP.)
- Large output current: 300 mA
- Input voltage: up to 6 V
- Dropout voltage: 0.2 V at 100 mA and 0.40 V at 200 mA
- Excellent Input Stability
- Be available to regulator and reference voltage
- Packages: SOT23 - 3, SOT89 - 3, SOT23, TO - 92
