MICRONEDatasheet (PDF)

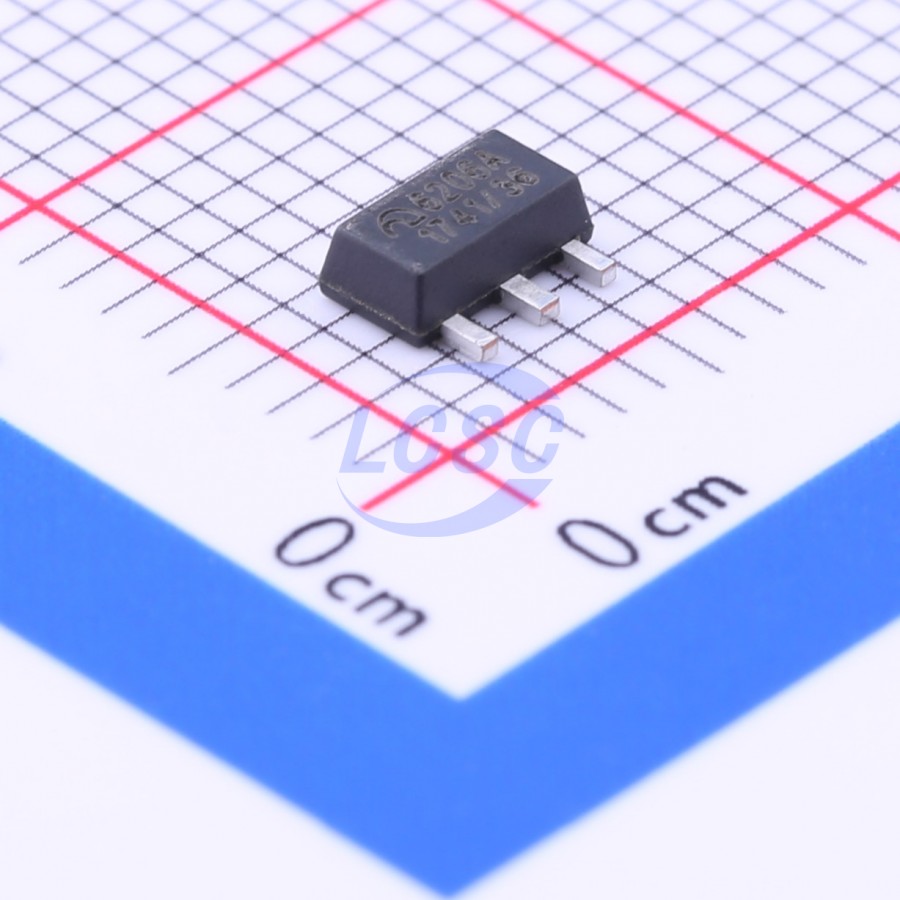

ME6206A36PG
3.6V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
Low power consumption, Low ESR Cap.Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A36PG
- Store part #
- C236697
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C236697
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.49 | ₹52.45 |
| 50+ | ₹8.30 | ₹415.00 |
| 150+ | ₹7.21 | ₹1,081.50 |
| 1,000+ | ₹6.35 | ₹6,350.00 |
| 2,000+ | ₹5.69 | ₹11,380.00 |
| 5,000+ | ₹5.36 | ₹26,800.00 |
5 × ₹10.49
₹52.45
excl. GST
₹61.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6206A36PG
₹52.45 for 5 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 200mV @ Iload = 100mA
- Input Voltage Range: up to 6.0V
- Highly Accuracy: ±2%
- Low Power Consumption: 8uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6210A36PG#C403652MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 20 | ₹10.36 · 20 in stock | View |
