MICRONEDatasheet (PDF)

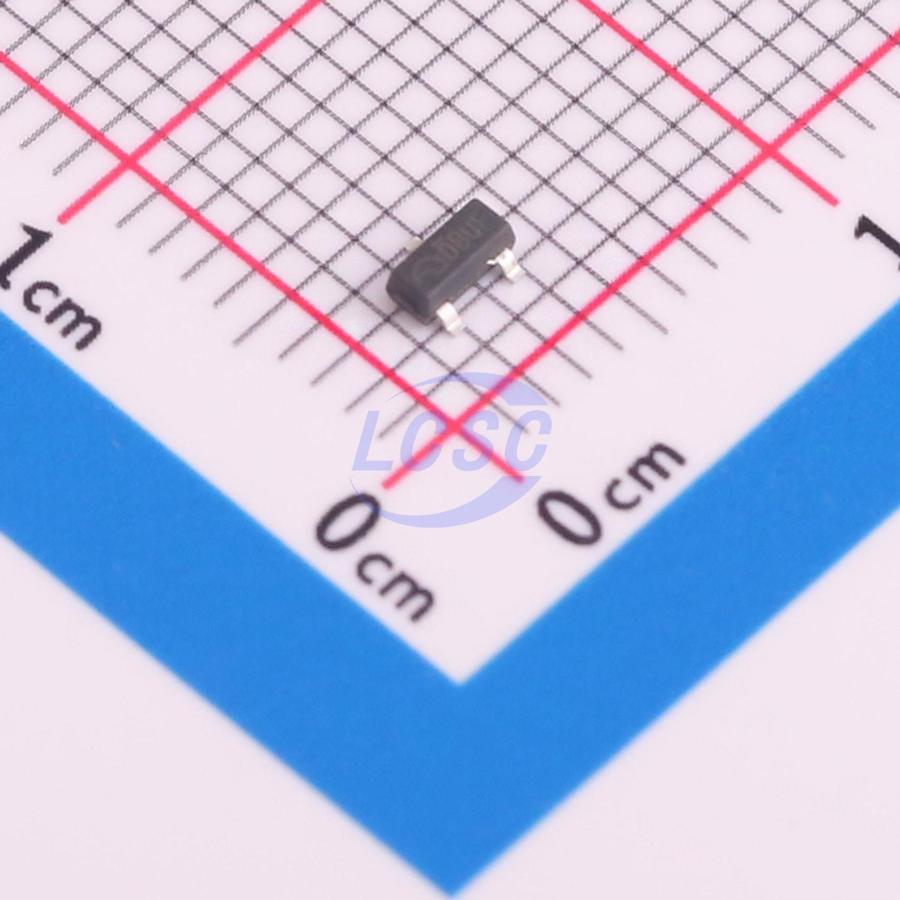

ME6206B18XG
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap. Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206B18XG
- Store part #
- C2683407
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,180 in stock
#C2683407
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.06 | ₹61.20 |
| 200+ | ₹2.35 | ₹470.00 |
| 600+ | ₹1.96 | ₹1,176.00 |
| 3,000+ | ₹1.72 | ₹5,160.00 |
| 9,000+ | ₹1.52 | ₹13,680.00 |
| 21,000+ | ₹1.42 | ₹29,820.00 |
20 × ₹3.06
₹61.20
excl. GST
₹72.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206B18XG
₹61.20 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.001 g
Overview
ME6206B series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 250mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 0.2V at 100mA, 0.4V at 200mA (VOUT = 3.3V)
- Input Voltage Range: up to 5.5V
- Highly Accuracy: ±2%
- Low Power Consumption: 7uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
