MICRONEDatasheet (PDF)

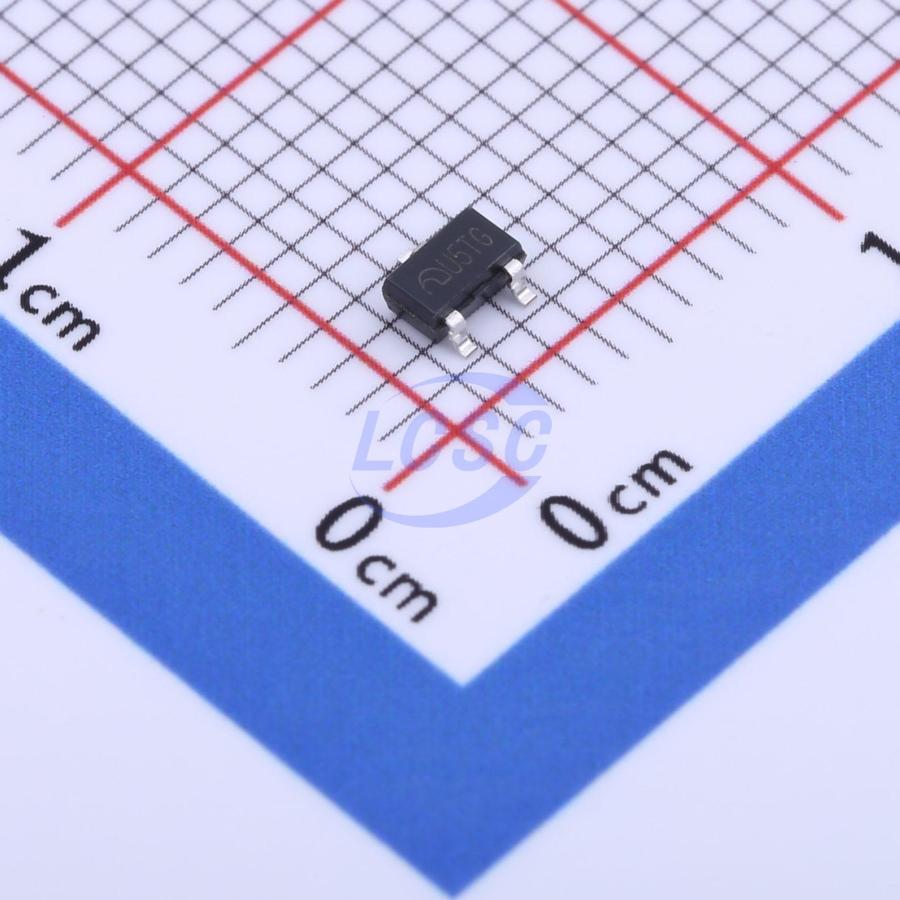

ME6208A50M3G
5V Positive Fixed SOT23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT23-3ROHS CompliantActive
150 mA, high input voltage LDO Linear Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6208A50M3G
- Store part #
- C2835815
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C2835815
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.26 | ₹62.60 |
| 100+ | ₹4.95 | ₹495.00 |
| 300+ | ₹4.30 | ₹1,290.00 |
| 3,000+ | ₹3.80 | ₹11,400.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.26
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6208A50M3G
₹62.60 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 150mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
ME6208 series are low-dropout linear voltage regulators with a built-in voltage reference module, error correction module and phase compensation module. ME6208 series allow high voltage input with low quiescent current. This series has the function of internal feedback resistor setting from 2.1 to 5.0V. The two output voltage accuracies are: ±1% (VOUT =3.0V,3.3V, 5.0V) and ±2% (other output voltages).
Applications
- Electronic weighbridge
- SCM
- Phones, cordless phones
- Security Products
- Water meters, power meters
Key features
- High output accuracy: ± 1% (VOUT = 3.0V, 3.3V, 5.0V), ± 2% (Others)
- Input voltage: up to 18 V
- Output voltage: 2.1 V ~ 5.0 V
- Ultra-low quiescent current (Typ. = 3 μA)
- Output Current: Iout ≤ 200 mA (When Vin = 7V and Vout = 5V)
- Importation good stability: Typ. 0.05% / V
- Low temperature coefficient
- Ceramic capacitor can be used
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6209A50M3G#C90248MICRONE · SOT-23-3L | MICRONE | SOT-23-3L | 29,640 | ₹8.81 · 29,640 in stock | View |
 | ME6231A50M3G#C2765180MICRONE · SOT23-3 | MICRONE | SOT23-3 | 15 | ₹11.47 · 15 in stock | View |
 | ME6210A50M3G#C236679MICRONE · SOT-23 | MICRONE | SOT-23 | 3,260 | ₹7.38 · 3,260 in stock | View |
 | ME6203A50M3G#C92717MICRONE · SOT-23 | MICRONE | SOT-23 | 4,845 | ₹11.97 · 4,845 in stock | View |
 | ME6239A50M3G#C2890990MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 40 | ₹9.88 · 40 in stock | View |
