MICRONEDatasheet (PDF)

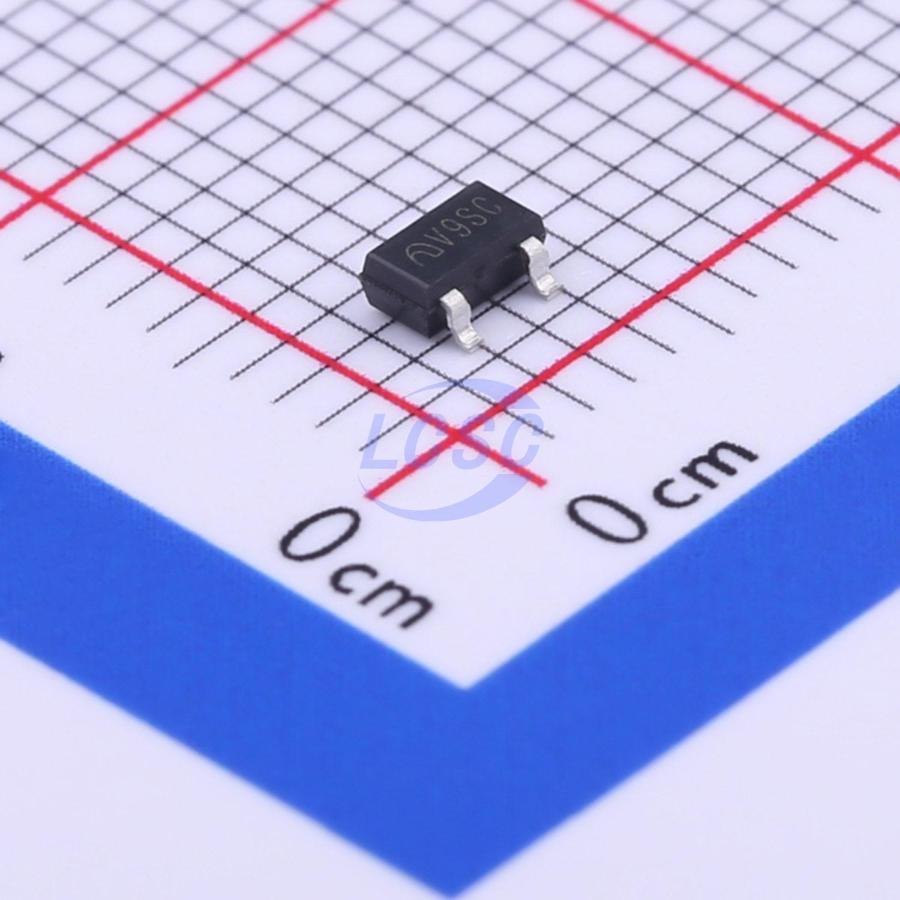

ME6209A27M3G
2.7V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Power Consumption LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A27M3G
- Store part #
- C403653
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C403653
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.92 | ₹89.20 |
| 100+ | ₹7.05 | ₹705.00 |
| 300+ | ₹6.11 | ₹1,833.00 |
| 3,000+ | ₹5.41 | ₹16,230.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹8.92
₹89.20
excl. GST
₹105.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6209A27M3G
₹89.20 for 10 + GST
Specifications
- Output Voltage
- 2.7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The ME6209 series are a group of positive voltage output, three – pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
Applications
- Cameras, video recorders
- Voltage regulator for microprocessor
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Ultra low quiescent current: 3.0uA(typ)
- High input voltage (up to 18V)
- Low dropout voltage: 80mV@Iout=40mA（VOUT = 3.3V）
- Output voltage accuracy: ± 1% （VOUT = 2.8V、3.3V、5.0V） ± 2% （Others）
- Maximum output current: 250mA（ΔVOUT = 3.3V）
- Low temperature coefficient
