MICRONEDatasheet (PDF)

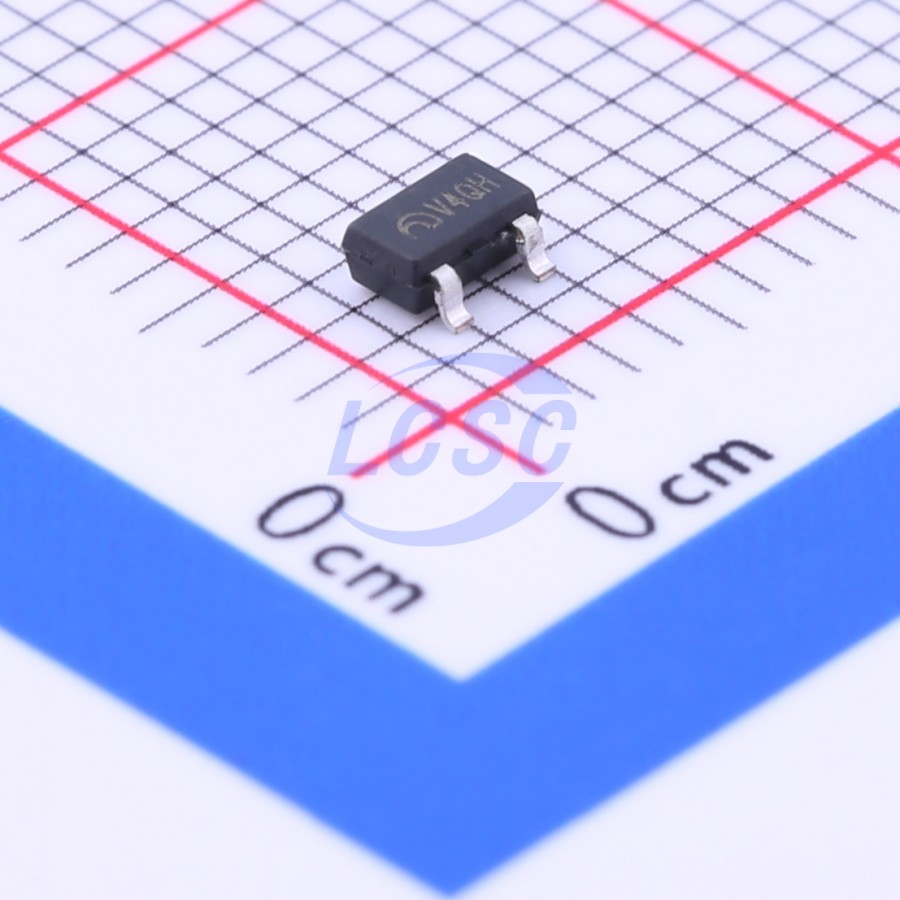

ME6209A36M3G
3.6V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Power Consumption LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A36M3G
- Store part #
- C236684
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C236684
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.91 | ₹69.10 |
| 100+ | ₹5.45 | ₹545.00 |
| 300+ | ₹4.72 | ₹1,416.00 |
| 3,000+ | ₹4.11 | ₹12,330.00 |
| 6,000+ | ₹3.68 | ₹22,080.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹6.91
₹69.10
excl. GST
₹81.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6209A36M3G
₹69.10 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+150℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 250mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
Applications
- Cameras
- video recorders
- Voltage regulator for microprocessor
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Ultra low quiescent current: 3.0uA(typ)
- High input voltage (up to 18V)
- Low dropout voltage :80mV@Iout=40mA (V_OUT=3.3V)
- Output voltage accuracy: ±2%
- Maximum output current: 250mA (V_OUT=3.3V)
- Low temperature coefficient
