MICRONEDatasheet (PDF)

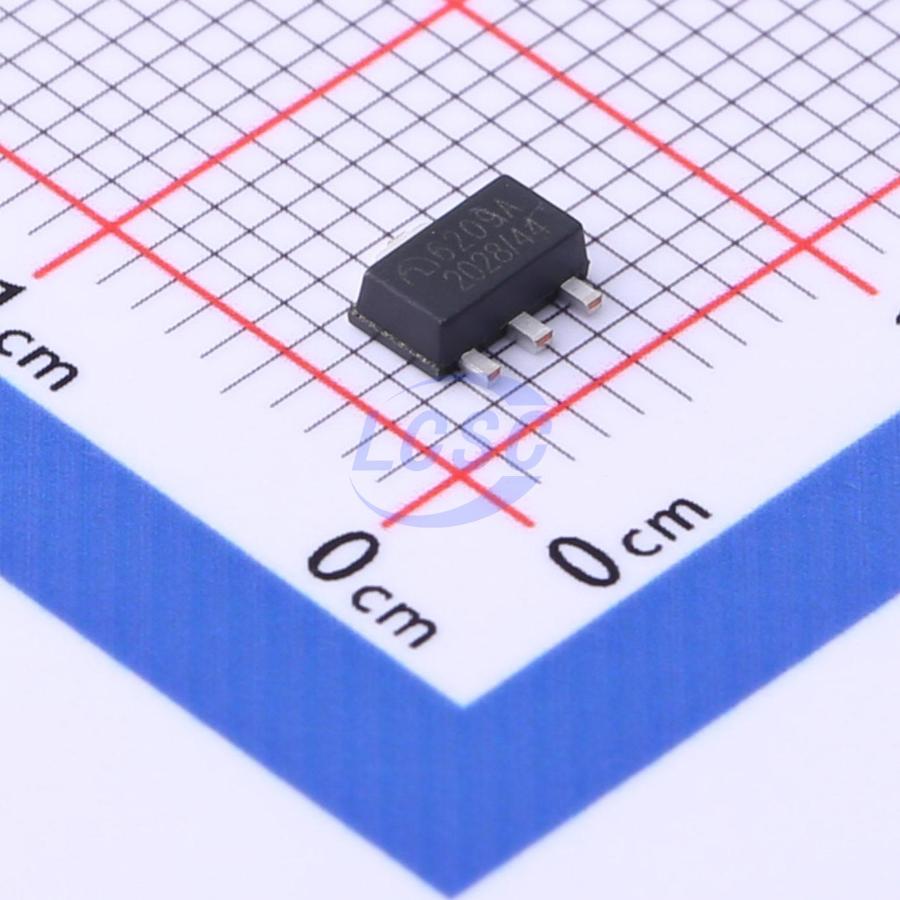

ME6209A44PG
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A44PG
- Store part #
- C2835828
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C2835828
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.68 | ₹28.40 |
| 50+ | ₹5.54 | ₹277.00 |
| 150+ | ₹5.45 | ₹817.50 |
| 500+ | ₹5.37 | ₹2,685.00 |
5 × ₹5.68
₹28.40
excl. GST
₹33.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6209A44PG
₹28.40 for 5 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 250mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The ME6209 series are CMOS step-down voltage regulators featuring high ripple rejection, low power consumption, low dropout, and overcurrent/short-circuit protection. These devices offer an ultra-low quiescent current (3.0μA Typ.) and can deliver 250mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Fabricated using a CMOS process, these devices feature low power consumption and high accuracy. The ME6209 supports a maximum voltage of 18V.
Applications
- Cameras, camcorders
- Microprocessor voltage regulators
- LAN card voltage regulators
- Wireless communication devices
- Audio/video equipment
Key features
- Ultra-low quiescent bias current (Typ. = 3.0μA)
- High-accuracy output voltage: ±1% (VOUT = 2.8V, 3.3V, 5.0V) / ±2% (other voltages)
- Maximum operating voltage: 18V
- High load capability: Iout = 250mA at Vout = 3.3V
- Ultra-low dropout voltage: 80mV at 40mA (Vout = 3.3V)
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6119A44PG#C621438MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 470 | ₹11.14 · 470 in stock | View |
