MICRONE

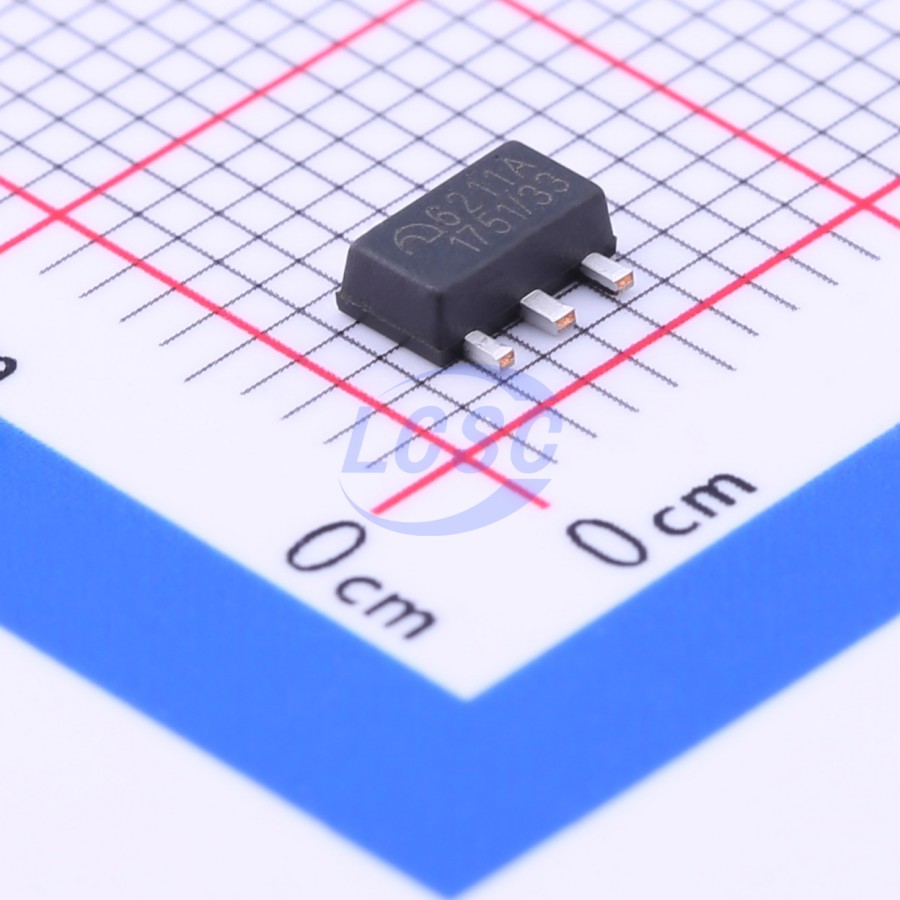

ME6211A33PG-N

3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-89RoHSActive

High Speed LDO Regulators, High PSRR, Low noise

Manufacturer: MICRONE
Manufacturer part #: ME6211A33PG-N
Store part #: C236673
Package / case: SOT-89
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16,025 in stock

#C236673

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.32	₹56.60
50+	₹9.12	₹456.00
150+	₹8.00	₹1,200.00
1,000+	₹7.00	₹7,000.00
2,000+	₹6.32	₹12,640.00
5,000+	₹5.99	₹29,950.00

Quantity (min 5, multiples of 5)

5 × ₹11.32

₹56.60

excl. GST

₹66.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

ME6211A33PG-N

₹56.60 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Ta)
Supply Current (Iq): 30uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6V
Features: Enable control;Short Circuit Protection;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.172 g

Overview

The ME6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the ME6211 series is ideal for today’s cutting edge mobile phone. Internally the ME6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The ME6211’s current limiters' foldback circuit also operates as a short protect for the output current limiter and the output pin. The ME6211 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.

Applications

Mobile phones
Cordless phones, radio communication equipment
Portable games
Cameras, Video cameras
Reference voltage sources
Battery powered equipment

Key features

Maximum Output Current: 500mA (VIN = 4.3V, VOUT = 3.3V)
Dropout Voltage: < 100mV @ IOUT = 100mA
Operating Voltage Range: 1.2V ~ 6.0V
Highly Accuracy: ±1%
Low Power Consumption: 30uA (TYP.)
Standby Current: 0.1uA (TYP.)
High Ripple Rejection: 70dB@1KHz (ME6211C33)
Low output noise: 50uVrms
Line Regulation: 0.05% (TYP.)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
ME6118A33PG#C236721MICRONE · SOT-89-3	MICRONE	SOT-89-3	28,870	₹13.49 · 28,870 in stock	View
ME6231A33PG#C2681684MICRONE · SOT-89-3	MICRONE	SOT-89-3	48,820	₹12.61 · 48,820 in stock	View
ME6210A33PG#C85233MICRONE · SOT-89	MICRONE	SOT-89	36,105	₹10.93 · 36,105 in stock	View
ME6118H33PG#C2683411MICRONE · SOT-89-3	MICRONE	SOT-89-3	On request	Price on request	Quote
