MICRONEDatasheet (PDF)

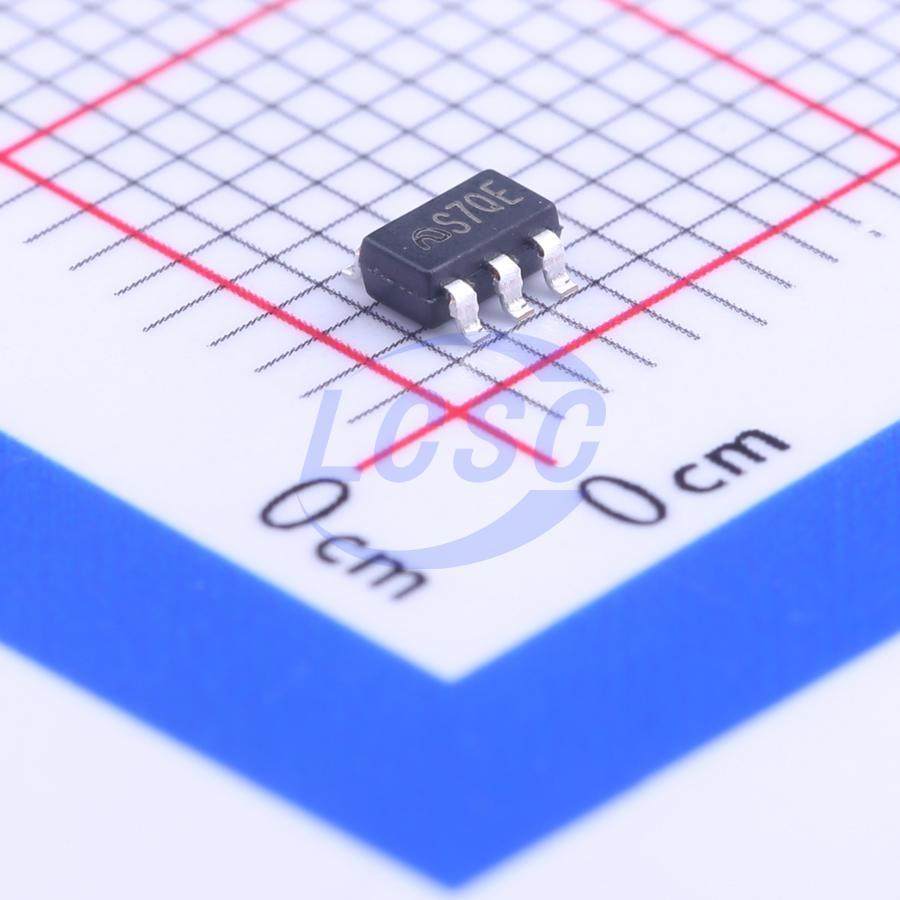

ME6211C15M5G-N
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
High-precision, high ripple rejection ratio, low-noise, ultra-fast response linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6211C15M5G-N
- Store part #
- C53100
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,190 in stock
#C53100
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.80 | ₹88.00 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.89 | ₹1,767.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.58 | ₹27,480.00 |
| 9,000+ | ₹4.29 | ₹38,610.00 |
10 × ₹8.80
₹88.00
excl. GST
₹103.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6211C15M5G-N
₹88.00 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
Applications
- Mobile phones
- Cordless telephone equipment
- Cameras
- Bluetooth and other RF products
- Voltage references
Key features
- The ME6211 series are high-precision, high ripple rejection ratio, low-noise, ultra-fast response LDO linear regulators fabricated using CMOS process. The regulators integrate a fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and ultra-fast response low dropout performance.
- The ME6211 series is compatible with ceramic capacitors that are smaller in size than tantalum capacitors, and requires no 0.1μF bypass capacitor, enabling further space savings.
- The high-speed response characteristics of the ME6211 series handle load current fluctuations. The output can be disabled via the CE pin on the chip, with shutdown current consumption below 1μA.
- Maximum output current: 500mA (VIN = 5V, VOUT = 3.3V)
- Low dropout: 100mV@IOUT = 100mA
- Operating voltage range: 2V ~ 6.0V
- Output voltage range: 1.2V ~ 5.0V (in 0.1V steps)
- High output accuracy: ±2%
- Low quiescent current: 50uA (TYP.)
- Shutdown current: 0.1uA (TYP.)
- High ripple rejection ratio: 70dB@1KHz (ME6211C33)
- Low output noise: 50uVrms
- Good line regulation: 0.05% (TYP.)
- Package types: SOT-89-3, SOT-23-3, SOT-23-5, DFN-6, SOT-353
