MICRONEDatasheet (PDF)

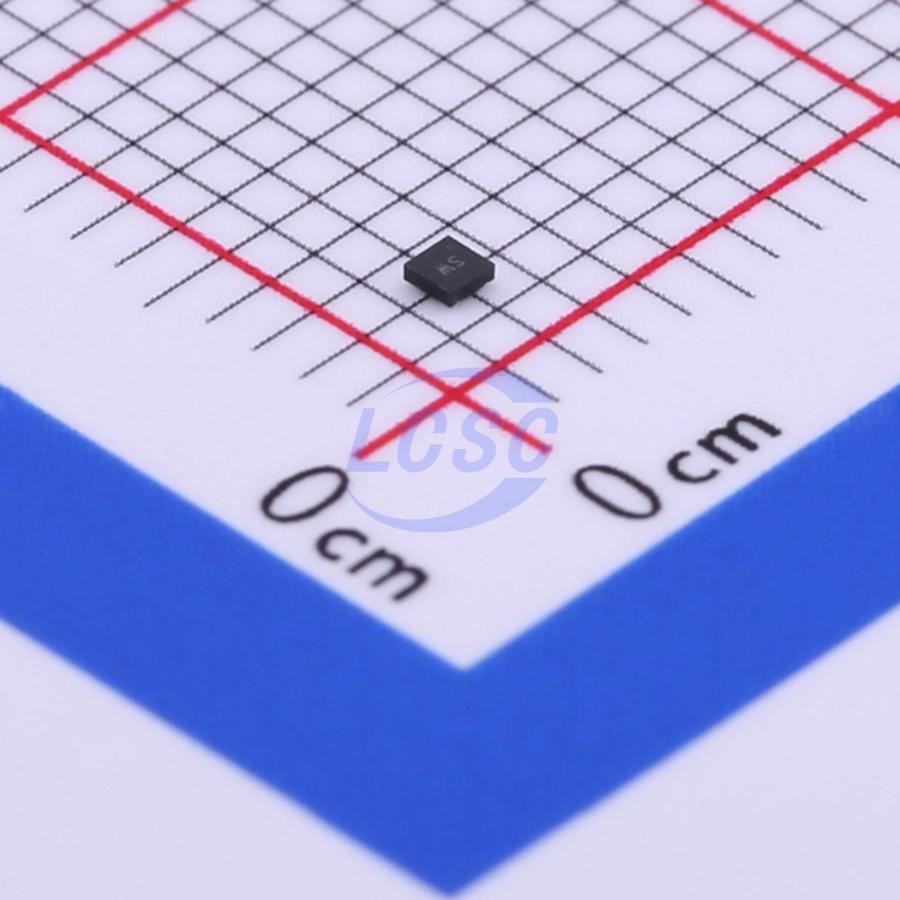

ME6211C15U4AG-N
1.5V Positive Fixed FBP-4L-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
FBP-4L-EP(1x1)RoHSActive
High Speed LDO Regulators, High PSRR, Low noise
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6211C15U4AG-N
- Store part #
- C427593
- Package / case
- FBP-4L-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,370 in stock
#C427593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.44 | ₹54.40 |
| 100+ | ₹4.25 | ₹425.00 |
| 300+ | ₹3.65 | ₹1,095.00 |
| 1,000+ | ₹3.20 | ₹3,200.00 |
| 5,000+ | ₹2.84 | ₹14,200.00 |
| 10,000+ | ₹2.67 | ₹26,700.00 |
10 × ₹5.44
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ME6211C15U4AG-N
₹54.40 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
The ME6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the ME6211 series is ideal for today’s cutting edge mobile phone. Internally the ME6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The ME6211’s current limiters' foldback circuit also operates as a short protect for the output current limiter and. the output pin. The ME6211 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies.The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
Applications
- Mobile phones
- Cordless phones, radio communication equipment
- Portable games
- Cameras, Video cameras
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 500mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 100mV @ Iout = 100mA
- Operating Voltage Range: 2V ~ 6.0V
- Highly Accuracy: ±1%
- Low Power Consumption: 30uA（TYP.）
- Standby Current: 0.1uA（TPY.）
- High Ripple Rejection: 70dB @ 1KHz （ME6211C33）
- Low output noise: 50uVrms
- Line Regulation: 0.05% （TYP.）
