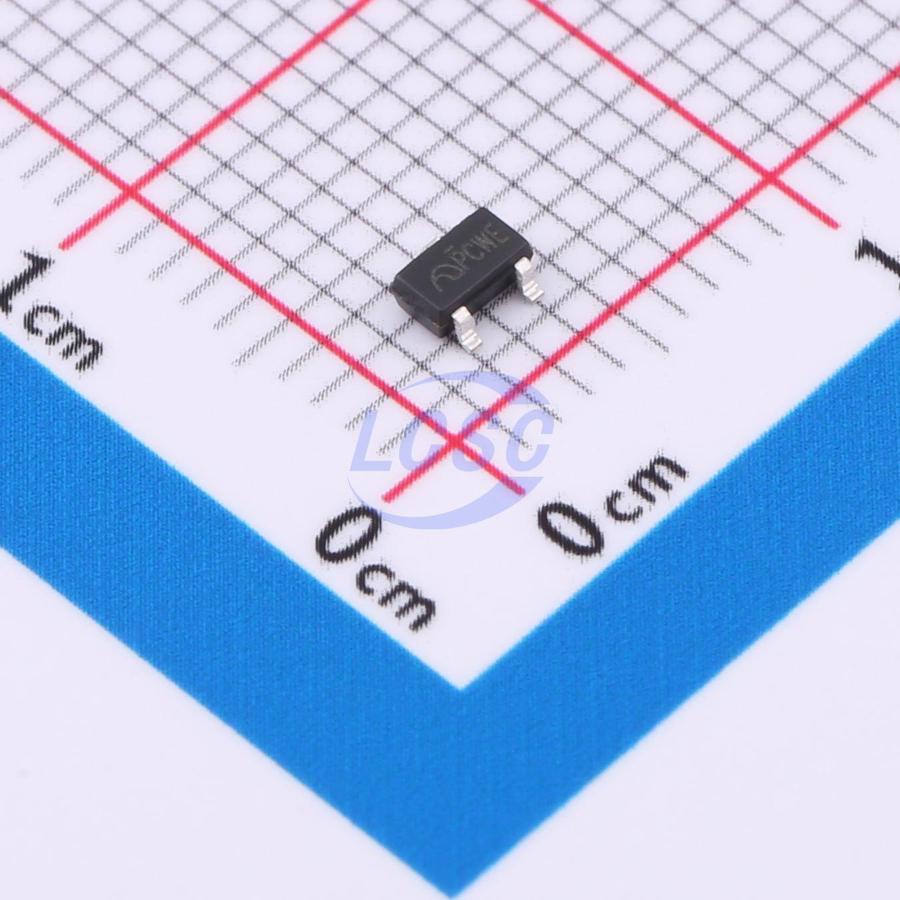

ME6214A30M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT23-3
SOT23-3RoHSActive
Ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6214A30M3G
- Store part #
- C7393813
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C7393813
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.14 | ₹55.70 |
| 50+ | ₹8.81 | ₹440.50 |
| 150+ | ₹7.65 | ₹1,147.50 |
| 500+ | ₹6.77 | ₹3,385.00 |
| 3,000+ | ₹6.07 | ₹18,210.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.14
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6214A30M3G
₹55.70 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The ME6214 series are ultra-low quiescent current, low dropout linear regulators fabricated with CMOS process. The regulator consumes approximately 0.7uA quiescent current, with a typical shutdown current of 0.01uA when disabled. Features include built-in enable control, current limiting circuit, foldback short-circuit protection, and automatic output capacitor discharge via enable control.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- CMOS process
- Ultra-low quiescent current consumption
- Supply current approx. 0.7uA; 0.01uA (typ.) after enable shutdown
- Built-in enable control, current limiting, and foldback short-circuit protection
- Enable-controlled output capacitor auto-discharge
- Ultra-low power consumption: active: 0.7uA (typ.), standby: 0.01uA (typ.)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (0.1V increments)
- Output accuracy: ±2%
- Input-to-output voltage dropout: 160mV / @IOUT = 100mA (3.3V)
- Output current: 300mA
- Current protection: foldback short-circuit current 30mA overcurrent protection
- Enable control: active high ON / active low OFF, must not be left floating
- ME6214C series: with enable version
- ME6214A series: without enable version
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6210A30M3G#C116985MICRONE · SOT-23 | MICRONE | SOT-23 | 6,390 | ₹8.73 · 6,390 in stock | View |
