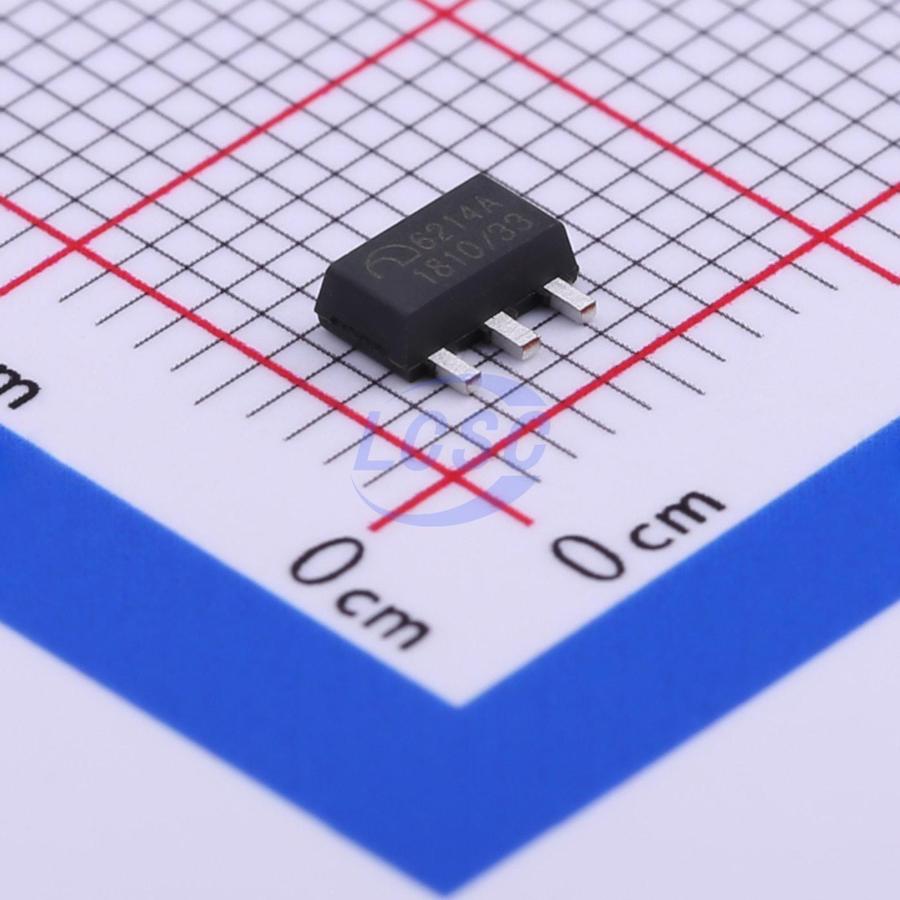

ME6214A33PG
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-89-3
SOT-89-3RoHSActive
Ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6214A33PG
- Store part #
- C427600
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C427600
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.66 | ₹58.30 |
| 50+ | ₹9.18 | ₹459.00 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 1,000+ | ₹7.03 | ₹7,030.00 |
| 2,000+ | ₹6.28 | ₹12,560.00 |
| 5,000+ | ₹5.91 | ₹29,550.00 |
5 × ₹11.66
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6214A33PG
₹58.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
The ME6214 series are ultra-low quiescent current, low dropout linear regulators fabricated using CMOS process. The regulator consumes approximately 0.7μA of quiescent current, with a shutdown current of 0.01μA (typical) when disabled. Features include built-in enable control, current limiting circuit, foldback short-circuit protection, and automatic output capacitor discharge via enable control.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Ultra-low quiescent current: Active: 0.7μA (typ.), Sleep: 0.01μA (typ.)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (in 0.1V steps)
- Output accuracy: ±2%
- Input-output voltage differential: 160mV @ Iout = 100mA (3.3V)
- Output current: 300mA
- Current protection: Foldback short-circuit current 30mA
- Overcurrent protection
- Enable control: High = ON / Low = OFF, must not be left floating
- Output capacitor auto-discharge function
- ME6214C series: with enable pin
- ME6214A series: without enable pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6119A33PG#C82566MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 2,365 | ₹10.76 · 2,365 in stock | View |
 | ME6118A33PG#C236721MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 25,955 | ₹13.49 · 25,955 in stock | View |
 | ME6231A33PG#C2681684MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 33,950 | ₹12.79 · 33,950 in stock | View |
 | ME6210A33PG#C85233MICRONE · SOT-89 | MICRONE | SOT-89 | 36,105 | ₹10.93 · 36,105 in stock | View |
 | ME6118H33PG#C2683411MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | On request | ₹7.96 · 0 in stock | View |
