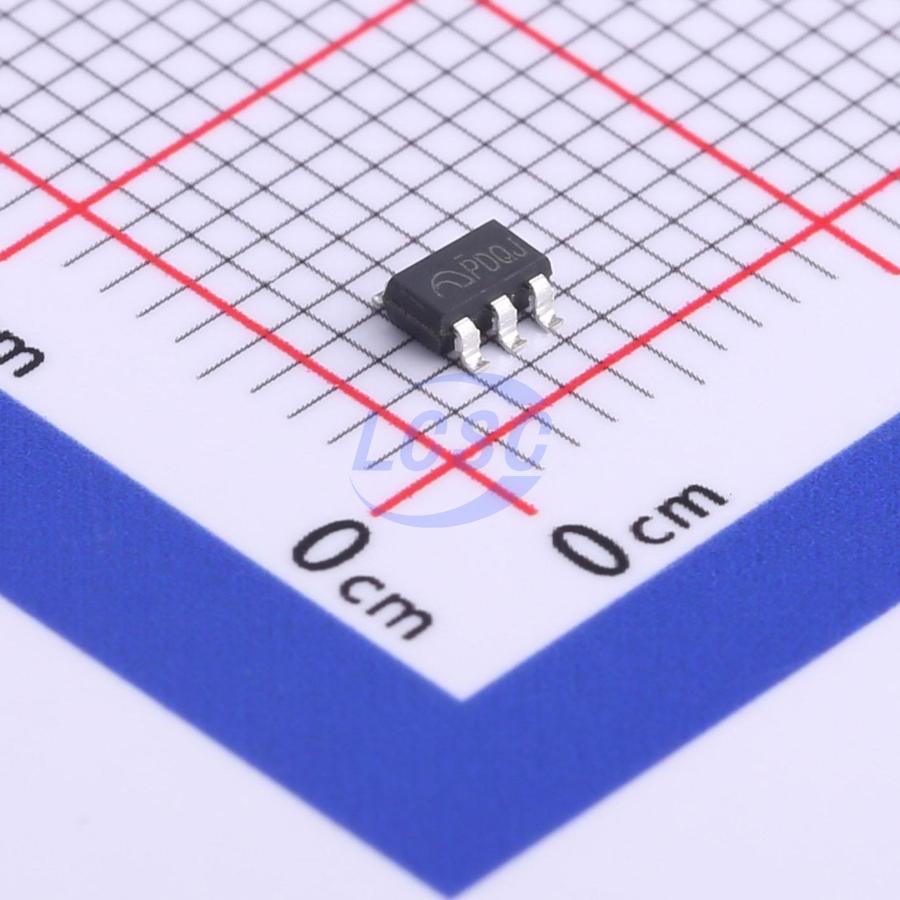

ME6214C45M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
Ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6214C45M5G
- Store part #
- C692279
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C692279
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.65 | ₹68.25 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.43 | ₹1,414.50 |
| 500+ | ₹8.37 | ₹4,185.00 |
| 3,000+ | ₹6.65 | ₹19,950.00 |
| 6,000+ | ₹6.22 | ₹37,320.00 |
5 × ₹13.65
₹68.25
excl. GST
₹80.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6214C45M5G
₹68.25 for 5 + GST
Specifications
- Output Voltage
- 4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The ME6214 series are ultra-low quiescent current, low dropout linear regulators fabricated with CMOS process. The regulator consumes approximately 0.7uA quiescent current, with a typical shutdown current of 0.01uA when disabled. Features include built-in enable control, current limiting circuit, foldback short-circuit protection, and automatic output capacitor discharge via enable control.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Ultra-low quiescent current: Active: 0.7uA (typ.), Sleep: 0.01uA (typ.)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (in 0.1V increments)
- Output accuracy: ±2%
- Input-output voltage differential: 160mV @ Iout = 100mA (3.3V)
- Output current: 300mA
- Current protection: Foldback short-circuit current 30mA
- Overcurrent protection enable control: Active-high ON / Active-low OFF, must not be left floating
- Output capacitor auto-discharge function
- ME6214C series: with enable pin
- ME6214A series: without enable pin
