MICRONEDatasheet (PDF)

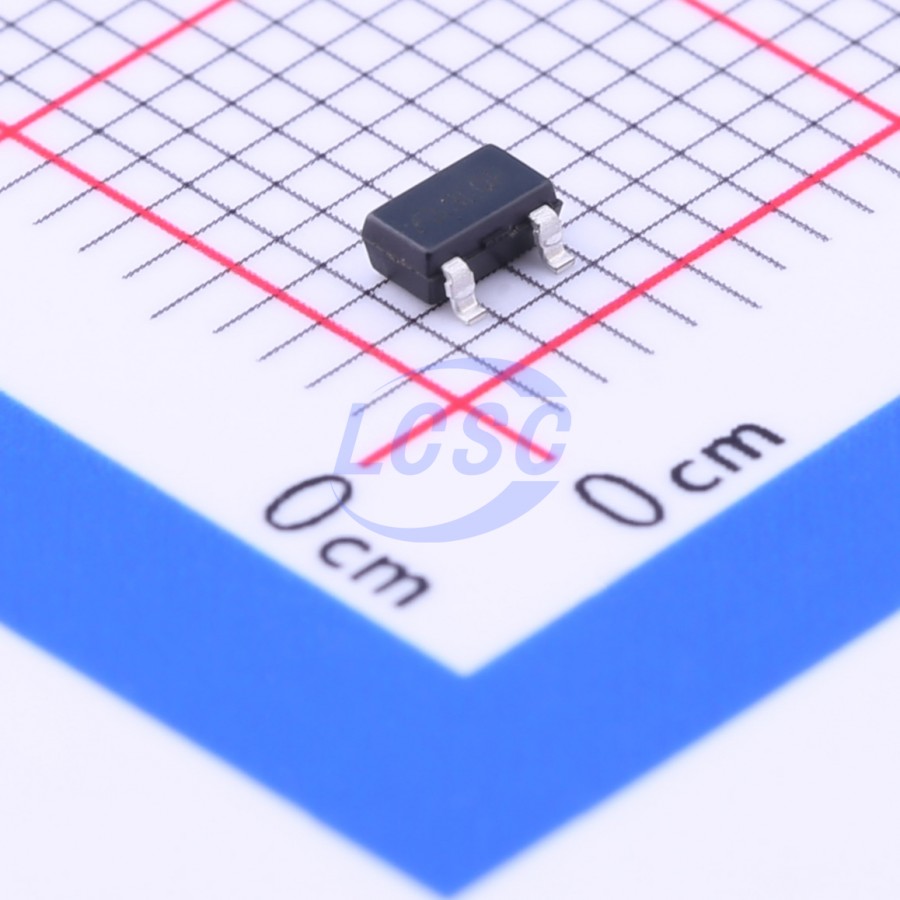

ME6216A13M3G
1.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Positive voltage regulator compatible with low-power, low-ESR capacitors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A13M3G
- Store part #
- C236662
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,040 in stock
#C236662
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.71 | ₹87.10 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 3,000+ | ₹5.23 | ₹15,690.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹8.71
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A13M3G
₹87.10 for 10 + GST
Specifications
- Output Voltage
- 1.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
