MICRONEDatasheet (PDF)

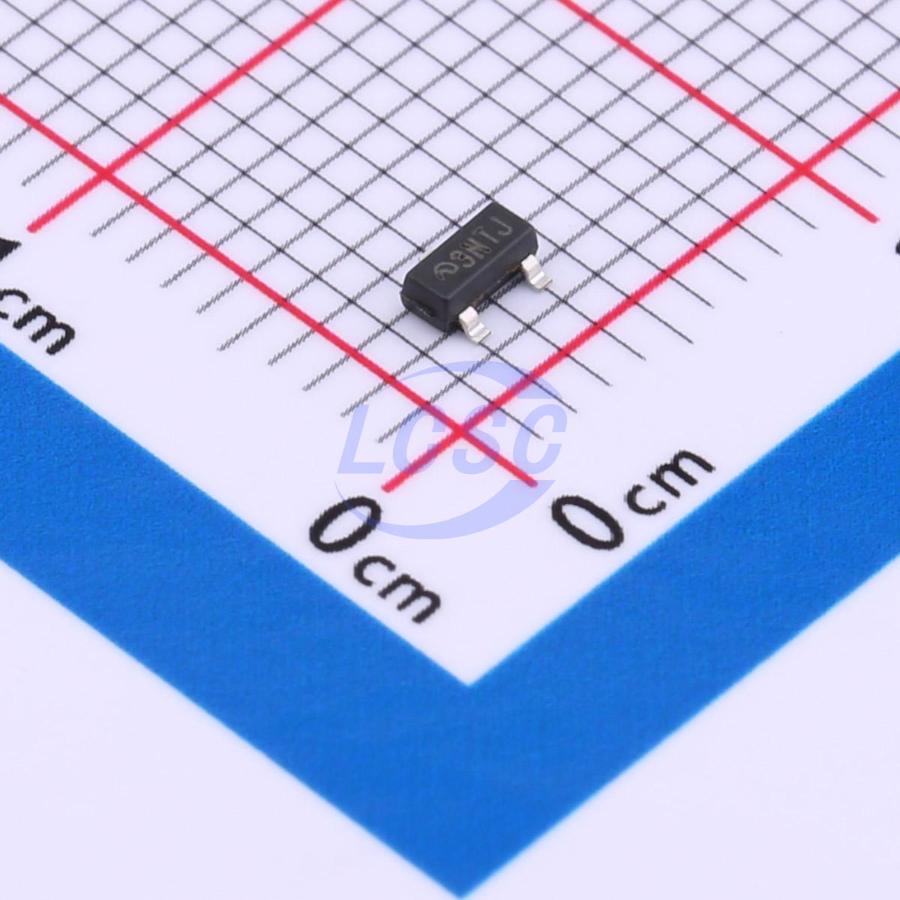

ME6216A20XG
Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap. Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A20XG
- Store part #
- C2835772
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C2835772
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.24 | ₹52.40 |
| 100+ | ₹4.15 | ₹415.00 |
| 300+ | ₹3.61 | ₹1,083.00 |
| 3,000+ | ₹3.14 | ₹9,420.00 |
| 6,000+ | ₹2.82 | ₹16,920.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
10 × ₹5.24
₹52.40
excl. GST
₹61.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A20XG
₹52.40 for 10 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate: ±1%
- Output voltage range: 1.0V ~ 5.0V
- Low power consumption: 5uA(TYP.)
- Large output current: 300mA (ΔVIN = 4.3V, VOUT = 3.3V)
- Input voltage: up to 6 V
- Dropout voltage: 0.11V at 100mA and 0.22V at 200mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Compatible at regulator and reference voltage
- Packages: SOT23 - 3, SOT89 - 3, SOT23, TO - 92
