MICRONEDatasheet (PDF)

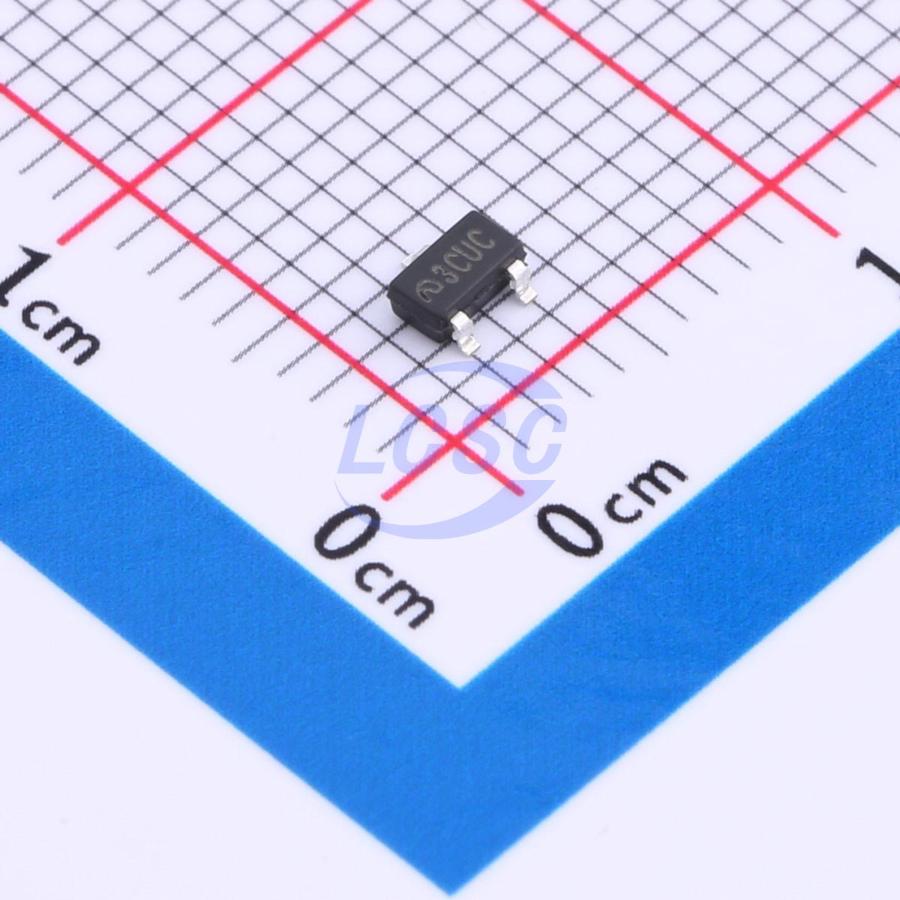

ME6216A25M3G
2.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Positive voltage regulator compatible with low-power, low-ESR capacitors
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A25M3G
- Store part #
- C2835779
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C2835779
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.96 | ₹99.60 |
| 100+ | ₹7.87 | ₹787.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹9.96
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A25M3G
₹99.60 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
