MICRONEDatasheet (PDF)

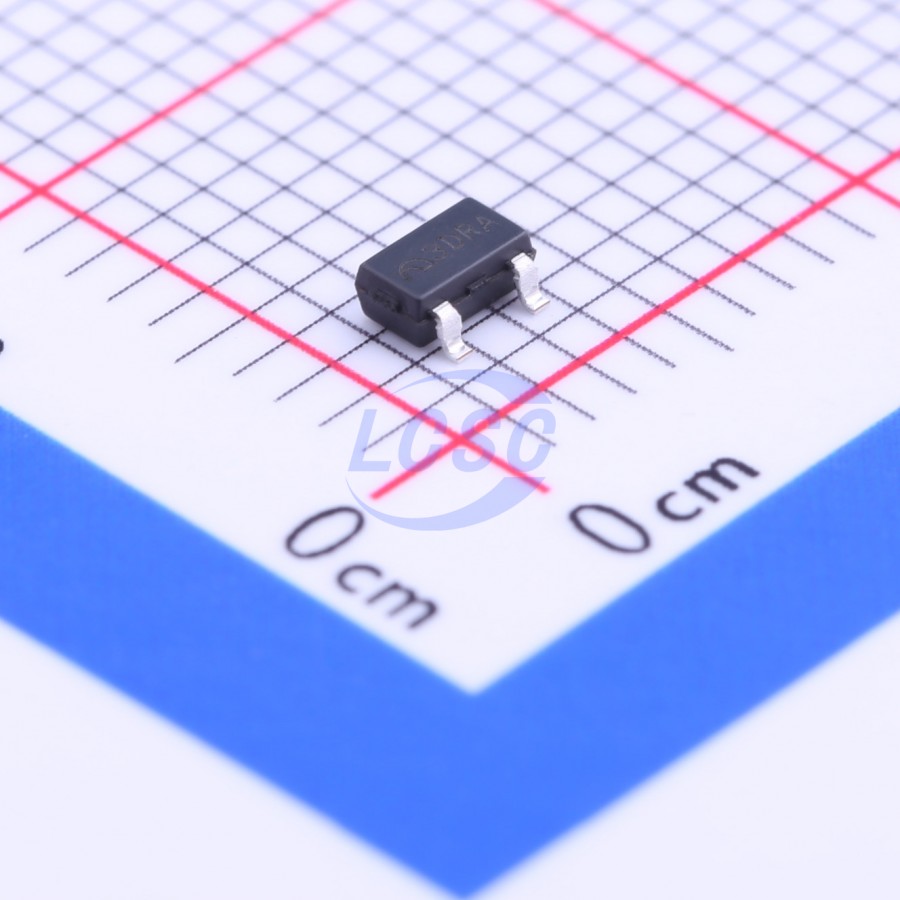

ME6216A28M3G
2.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low power consumption, Low ESR Cap. Compatible
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A28M3G
- Store part #
- C236658
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C236658
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.93 | ₹593.00 |
| 300+ | ₹5.17 | ₹1,551.00 |
| 3,000+ | ₹4.39 | ₹13,170.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.70 | ₹33,300.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A28M3G
₹74.40 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 9V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6 V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6210A28M3G#C2835859MICRONE · SOT-23 | MICRONE | SOT-23 | On request | ₹7.26 · 0 in stock | View |
