MICRONEDatasheet (PDF)

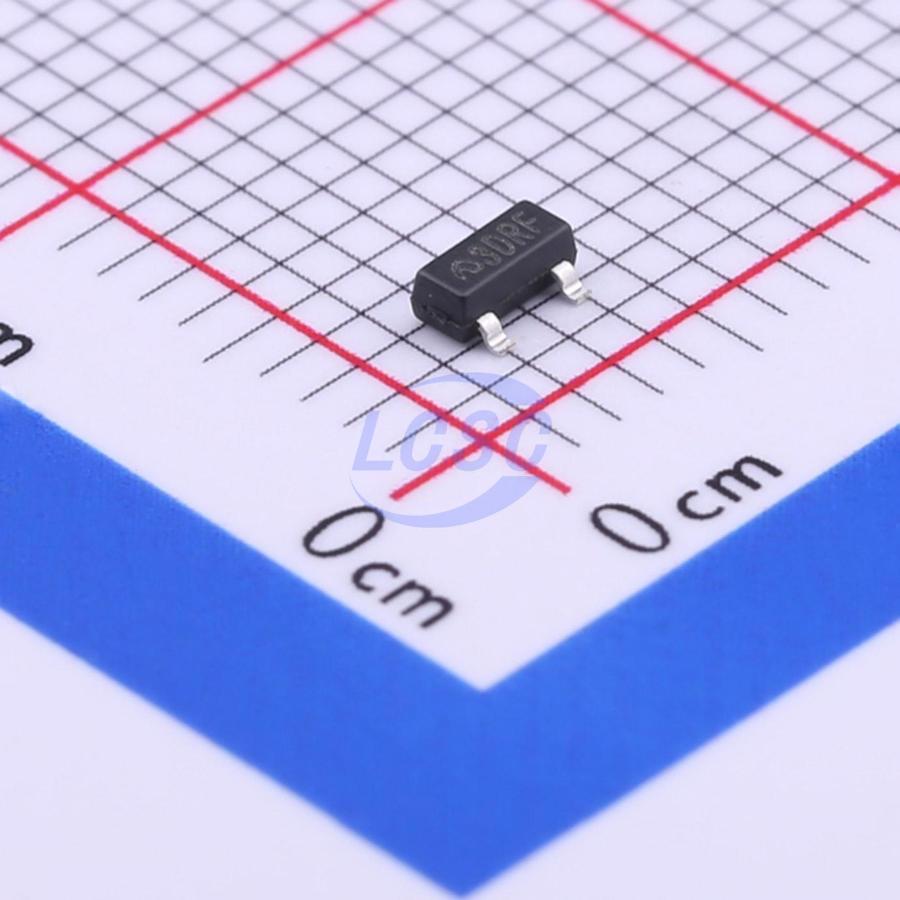

ME6216A28XG
2.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap. Compatible
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6216A28XG
- Store part #
- C427601
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,200 in stock
#C427601
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.08 | ₹101.60 |
| 200+ | ₹3.97 | ₹794.00 |
| 600+ | ₹3.35 | ₹2,010.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
| 21,000+ | ₹2.45 | ₹51,450.00 |
20 × ₹5.08
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6216A28XG
₹101.60 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Overview
ME6216 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Output voltage range: 1.0V ~ 5.0V
- Input voltage: up to 6V
- Dropout Voltage: 110mV @ IOUT = 100mA, 240mV @ IOUT = 200mA
- Highly Accuracy: ±1%
- Low power consumption: 6uA (TYP.)
- Large output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Excellent Input Stability
- Be available to regulator and reference voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6211A28M3G-N#C236676MICRONE · SOT-23 | MICRONE | SOT-23 | 340 | ₹8.82 · 340 in stock | View |
 | ME6210A28M3G#C2835859MICRONE · SOT-23 | MICRONE | SOT-23 | On request | ₹7.26 · 0 in stock | View |
