MICRONEDatasheet (PDF)

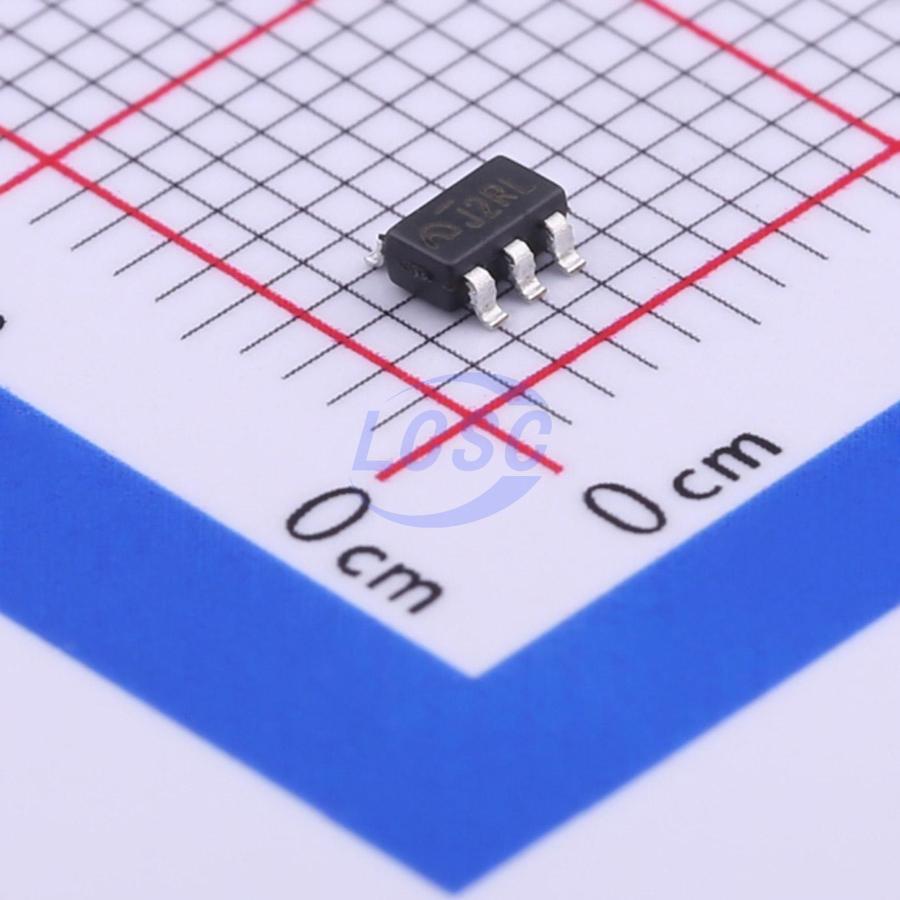

ME6217C33M5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
High Output Current LDO Regulator, High PSRR, Low Dropout
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6217C33M5G
- Store part #
- C427602
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88,470 in stock
#C427602
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.73 | ₹58.65 |
| 50+ | ₹9.70 | ₹485.00 |
| 150+ | ₹8.67 | ₹1,300.50 |
| 500+ | ₹7.81 | ₹3,905.00 |
| 3,000+ | ₹7.27 | ₹21,810.00 |
| 6,000+ | ₹7.07 | ₹42,420.00 |
5 × ₹11.73
₹58.65
excl. GST
₹69.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6217C33M5G
₹58.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The ME6217 Series is a positive voltage regulator with a low dropout voltage, high output voltage accuracy, and low current consumption developed based on CMOS technology. A built - in low on - resistance transistor provides a low dropout voltage and large output current, a built - in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor. An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors.
Applications
- Power supply for DVD and CD - ROM drives
- Power supply for personal communication device
- Power supply for battery - powered devices
- Power supply for note PCs
Key features
- Maximum Output Current: 800 mA (VIN ≥ VOUT(T)+1.0V)
- Dropout Voltage: 100mV@IOUT = 300mA, VOUT = 5.0V
- Operating Voltage Range: 2V ~ 6.5V
- Output Voltage: 1.5V ~ 5.6V, selectable in 0.1V steps
- Highly Accuracy: ±1%
- Low Current Consumption: During Operation: 100uA（TYP.） During Shutdown: 0.1uA（TYP.）
- High Ripple Rejection: 65dB@1KHz (ME6217C50)
- Line Regulation: 0.05% （TYP.）
- Thermal Shutdown Protection: 160°C
- Small Packages: SOT - 89 - 5, SOT23 - 5, SOT89 - 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6207C33M5G#C236696MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | On request | Price on request | Quote |
