MICRONEDatasheet (PDF)

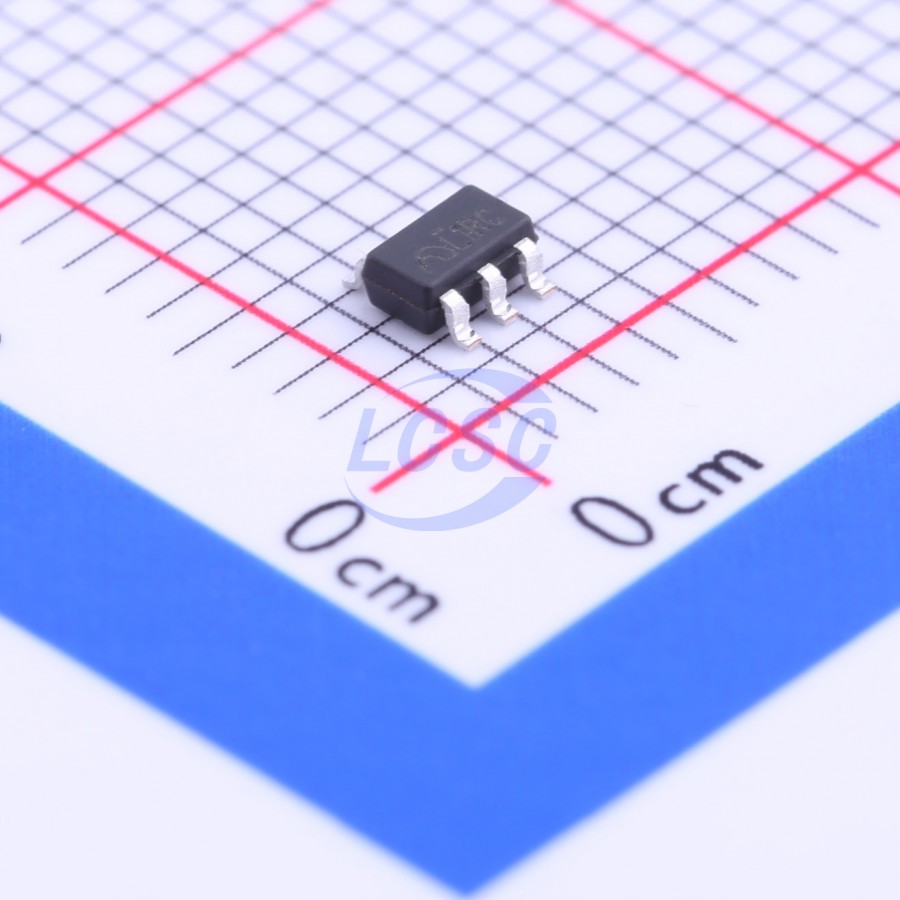

ME6221CM5G
1.25V~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
400mA, Low Output Voltage Adjustable, High Speed LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6221CM5G
- Store part #
- C236642
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,585 in stock
#C236642
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.09 | ₹60.45 |
| 50+ | ₹9.71 | ₹485.50 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.63 | ₹3,815.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.69 | ₹34,140.00 |
5 × ₹12.09
₹60.45
excl. GST
₹71.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6221CM5G
₹60.45 for 5 + GST
Specifications
- Output Voltage
- 1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The ME6221 series are highly accurate, low noise, LDO Voltage Regulators. The output voltage can be set via the external resistor. On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The ME6221 series can operate with up to 18V input.
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers Battery Chargers
Key features
- Voltage Setting via External Resistor：1.25V~5.0V
- Maximum Output Current：400mA
- Dropout Voltage：125mV@ IOUT =100mA (Vout=3.3V)
- Operating Voltage Range：2.8V~18V
- Highly Accuracy：±2%
- Standby Current：45uA（TYP.）
- Line Regulation：30mV（TYP.）
- Temperature Stability ≲0.5%
- Thermal Shutdown Protection：165 °C
